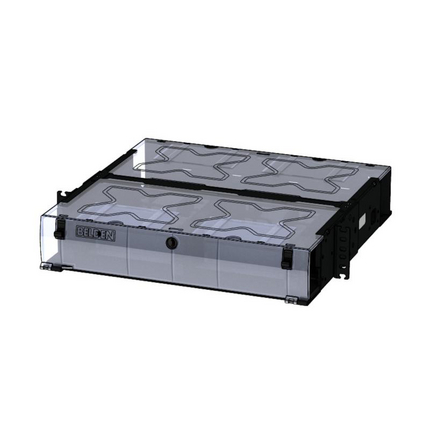

(4)FX ECX PATCH PANEL HOUSING, 2U, BLACK FINISH
| Environmental Space: | Indoor |
| Suitable Applications: | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
| Weight: | 5.450 |
| Overall Height: | 3.370 in |
| Overall Width: | 19.120 in |
| Overall Depth: | 17.560 in |
| Max Capacity: | Holds 4 ECX adapter frames or cassettes |
| Operating Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Description | Material |
|---|---|
| Housing | Steel/Aluminum |
| Housing | PC/ABS |
| Housing | Polycarbonate |
| MII Order #39 (China RoHS): | EUP 50 |
| Included Parts: | Screws (12-24); Screws (10-32); Tie Wraps; Velcro Straps; Identification Labels; Quick Installation Guides; Strain Reliefs |
| Item # | Color | UPC |
|---|---|---|
| ECX-02U | Black | 611589224819 |
| Notes: | For more information, please refer to our web site at http://www.belden.com. Installation Guide: PX106483. |
| Update and Revision: | Revision Number: 0.8 Revision Date: 02-24-2026 |
