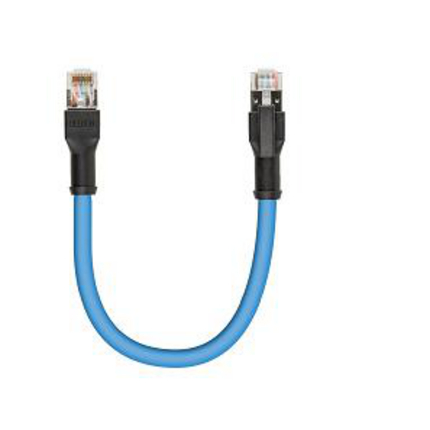

(109)Ethernet/IP CAT6A 10 Gbps 10 Gigabit Ethernet double-ended cord set, Male straight black RJ45 to male straight black RJ45, shielded, LSNH cable, 8 wires.
| Brand: | Lumberg Automation |
| Connector Type: | Cordset, double ended |
| Rated Voltage: | 30 V |
| Data Transmission: | Up to 10GBase-T, Cat6A. |
| Data Transmission Rate: | 10Gbit/s |
| Type of Contact / Gender: | Male |
| Connector Design: | Straight |
| Number of Pins: | 8 |
| Coding: | RJ45 |
| Ambient Temperature (Operation)*: | - 25 °C to + 70 °C |
| Protection Degree / IP Rating**: | IP20 |
| Housing Material: | PC - Polycarbonate, UL 94V-0 rated |
| Attachment Plating: | Gold plating in contact area |
| Shielding Material: | Copper Alloy |
| Cable Type: | 26AWG CAT6A S/FTP LSZH Patch Cable |
| Number of Wires: | 8 |
| ISO/IEC Compliance: | ISO/IEC 11801 |
| UL AWM Style Compliance: | AWM 20851 |
| Cable Jacket Material: | LSZH |
| Cable Jacket Color: | Blue |
| Cable Diameter D: | 6.8 mm |
| Wire Insulation Material: | Polyolefin |
| Insulated Wire Diameter: | 1.05 mm |
| Ambient Temperature (Fixed Installation): | - 40 °C to + 80 °C |
| Flammability Class (Cable Jacket): | IEC 60331-1; IEC 60332-3-24 |
| Core Colors: | 1. White & Blue, 2. White & Orange, 3. White & Green, 4. White & Brown |
| Type of Contact / Gender, Side 2: | Male |
| Connector Design, Side 2: | Straight |
| Number of Pins, Side 2: | 8 |
| Coding, Side 2: | RJ45 |
| Ambient Temperature (Operation), Side 2*: | - 25 °C to + 70 °C |
| Protection Degree / IP Rating, Side 2**: | IP20 |
| Housing Material, Side 2: | PC - Polycarbonate, UL 94V-0 rated |
| Attachment Plating, Side 2: | Gold plating in contact area |
| Shielding Material, Side 2: | Copper Alloy |
| RoHS Compliant: | Yes |
| UV Resistance: | Yes |
| Protection Degree / IP Rating Note: | only if mounted and locked in combination with Hirschmann / Lumberg Automation connector |
| Update and Revision: | Revision Number: 0.10 Revision Date: 12-28-2022 |
