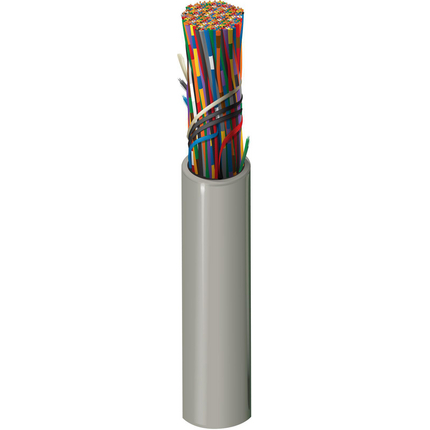

(4)CAT3, DIW 300-Pair, U/UTP-unshielded, Plenum-CMP, Premise Backbone Cable, 24 AWG solid bare copper conductors, LS-PVC insulation, ripcord, LS-PVC jacket
| Suitable Applications: | Premise Backbone Cable |
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 24 | Solid | BC - Bare Copper | 300 |
| Conductor Count: | 600 |
| Total Number of Pairs: | 300 |
| Material |
|---|
| PVC - Polyvinyl Chloride |
| Bonded-Pair: | N/A |
| Number | Color |
|---|---|
| 1 | White/Blue & Blue/White |
| 2 | White/Orange & Orange/White |
| 3 | White/Green & Green/White |
| 4 | White/Brown & Brown/White |
| 5 | White/Slate & Slate/White |
| 6 | Red/Blue & Blue/Red |
| 7 | Red/Orange & Orange/Red |
| 8 | Red/Green & Green/Red |
| 9 | Red/Brown & Brown/Red |
| 10 | Red/Slate & Slate/Red |
| 11 | Black/Blue & Blue/Black |
| 12 | Black/Orange & Orange/Black |
| 13 | Black/Green & Green/Black |
| 14 | Black/Brown & Brown/Black |
| 15 | Black/Slate & Slate/Black |
| 16 | Yellow/Blue & Blue/Yellow |
| 17 | Yellow/Orange & Orange/Yellow |
| 18 | Yellow/Green & Green/Yellow |
| 19 | Yellow/Brown & Brown/Yellow |
| 20 | Yellow/Slate & Slate/Yellow |
| 21 | Violet/Blue & Blue/Violet |
| 22 | Violet/Orange & Orange/Violet |
| 23 | Violet/Green & Green/Violet |
| 24 | Violet/Brown & Brown/Violet |
| 25 | Violet/Slate & Slate/Violet |
| Group One Binder | White/Blue |
| Group Two Binder | White/Orange |
| Group Three Binder | White/Green |
| Group Four Binder | White/Brown |
| Group Five Binder | White/Slate |
| Group Six Binder | Red/Blue |
| Group Seven Binder | Red/Orange |
| Group Eight Binder | Red/Green |
| Group Nine Binder | Red/Brown |
| Group Ten Binder | Red/Slate |
| Group Eleven Binder | Black/Blue |
| Group Twelve Binder | Black/Orange |
| Number | Color |
|---|---|
| 1 | Blue/White |
| 2 | Orange/White |
| 3 | Green/White |
| 4 | Brown/White |
| 5 | Gray/White |
| 6 | Blue/Red |
| 7 | Orange/Red |
| 8 | Green/Red |
| 9 | Red/Brown |
| 10 | Red/Gray |
| 11 | Black/Blue |
| 12 | Black/Orange |
| Material | Material Trade Name | Nominal Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | Flamarrest® | 1.350 in | Yes |
| Max. Conductor DCR | Max. DCR Unbalance |
|---|---|
| 93.8 Ohm/km | 5 % |
| Max. Capacitance Unbalance | Nom.Mutual Capacitance |
|---|---|
| 330 pF/100m | 17 pF/ft |
| Frequency [MHz] | Max. Delay | Max. Delay Skew | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|---|
| 16 MHz | 543 ns/100m | 45 ns/100m | 61% |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. RL (Return Loss) [dB] | Max./Min. Fitted Impedance |
|---|---|---|---|---|---|---|---|
| 0.772 MHz | 2.2 dB/100m | 47.0 dB | 43.0 dB | 50.1 dB | 46.1 dB | ||
| 1 MHz | 2.6 dB/100m | 45.0 dB | 41.0 dB | 47.8 dB | 43.8 dB | 12.0 dB | 100 ± 15 Ohm |
| 4 MHz | 5.6 dB/100m | 36.0 dB | 32.0 dB | 36.0 dB | 32.0 dB | 12.0 dB | 100 ± 15 Ohm |
| 8 MHz | 8.5 dB/100m | 31.0 dB | 28.0 dB | 28.3 dB | 24.3 dB | 12.0 dB | 100 ± 15 Ohm |
| 10 MHz | 9.7 dB/100m | 30.0 dB | 26.0 dB | 26.2 dB | 22.3 dB | 12.0 dB | 100 ± 15 Ohm |
| 16 MHz | 13.1 dB/100m | 27.0 dB | 23.0 dB | 20.1 dB | 16.1 dB | 10.0 dB | 100 ± 15 Ohm |
| UL Voltage Rating |
|---|
| 300 V RMS |
| Installation Temperature Range: | 0°C To +50°C |
| Non-UL Temp Rating: | +60°C |
| Storage Temperature Range: | -30°C To +60°C |
| Operating Temperature Range: | -30°C To +60°C |
| Bulk Cable Weight: | 1220 lbs/1000ft |
| Max. Pull Tension: | 1800 lbs |
| Min. Bend Radius During Installation: | 27.0 in |
| Min. Bend Radius/Minor Axis: | 13.5 in |
| NEC/(UL) Compliance: | CMP |
| CEC/C(UL) Compliance: | CMP |
| CPR Euroclass: | Eca |
| Data Category: | Category 3 |
| ANSI Compliance: | S-90-661-2012 Category 3, ANSI/NEMA WC-63.1 Category 3 |
| TIA/EIA Compliance: | ANSI/TIA-568-C.2 Category 3 |
| Environmental Space: | Plenum |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/11/EC (BFR): | Yes |
| EU Directive 2003/96/EC (BFR): | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): | Yes |
| EU Directive Compliance: | Yes |
| EU CE Mark: | Yes |
| EU REACH SVHC Compliance (yyyy-mm-dd): | 2017-07-10 |
| MII Order #39 (China RoHS): | Yes |
| Suitability - Aerial: | No |
| Suitability - Burial: | No |
| Suitability - Hazardous Locations: | No |
| Suitability - Indoor: | Yes |
| Suitability - Non-Halogenated: | No |
| Suitability - Oil Resistance: | No |
| Suitability - Outdoor: | No |
| Suitability - Sunlight Resistance: | No |
| CSA/C(UL) Flammability: | FT6 |
| UL Flammability: | NFPA 262 Plenum (UL 910) |
| UL voltage rating: | 300 V RMS |
| Plenum (Y/N): | Yes |
| Non-Plenum Number: | DIW300 |
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| DPLN300 732CUT | Olive | Cut to Length | 612825061038 | |
| DPLN300 732CUT | Olive | Cut to Length | 1 ft | 612825061038 |
| Notes: | Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage/Meter Markings. |
| Update and Revision: | Revision Number: 0.413 Revision Date: 02-03-2025 |
