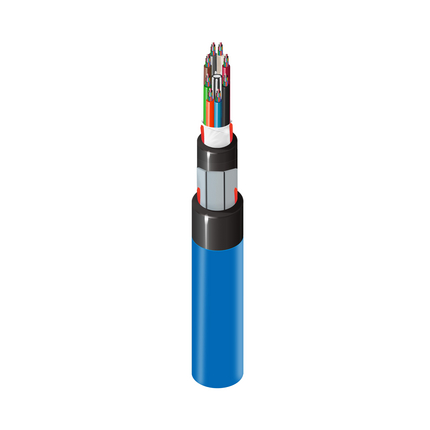

(4)OS2, MLT, Dry Core –Inner HDPE & Nylon Sheath, Flat FRP Armored, Outer HDPE & Nylon Sheath, All Dielectric Optical Fiber Cable, Termite & Rodent Resistant
| Suitable Applications: | For outdoor use in structured (data) wiring systems such as industrial backbone, campus backbone, building backbone (riser) and/or horizontal cabling. For outdoor use in networks for industrial, telecom, cable TV and/or broadcast. Easy to install in ducts, tunnels and trenches and/or tubes. Suitable for Direct Burial. |
| Fiber Type | Fiber Count |
|---|---|
| OS2 | 6 |
| Fiber Color Coding: | TIA coding (Gxxxxxx.T): Blue, Orange, Green, Brown, Gray, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Buffer Material |
|---|
| Buffer Tube Material:Thermoplastic Material (PBT), Buffer Tube Filling Material: Synthetic Thixotropic Gel |
| Cable Core Waterblocking: | Waterblocking Yarns + Tape |
| Bulk Cable Weight: | 164 kg/km |
| Material: | PE - Polyethylene |
| Material@InnerJacket2: | Nylon |
| Material |
|---|
| PE - Polyethylene |
| Nylon |
| Table Notes: | Armor Type: Flat Fiber Reinforced Plastic Rod Cable Overall Diameter: 13.5mm |
| Mode Field Diameter at 1310 nm: | 9.2 µm |
| Mode Field Diameter at 1550 nm: | 10.4 µm |
| Max. Attenuation at 1310 nm: | 0.36 dB/km |
| Max. Attenuation at 1550 nm: | 0.22 dB/km |
| Description | Tested Standard | Requirement/Value |
|---|---|---|
| Cable Min. Bend Radius Installation (Short Term) | IEC 60794-1-21-E11 | 30 x OD |
| Cable Min. Bend Radius Operation (Long Term) | IEC 60794-1-21-E11 | 15 x OD |
| Cable Max. Tensile Strength Installation (Short Term) | IEC 60794-1-21-E1 | 4000 N (899 lbf) |
| Cable Max. Tensile Strength Operation (Long Term) | IEC 60794-1-21-E1 | 1200 N (270 lbf) |
| Operating Temperature Range: | - 30℃ To + 70°C |
| Installation Temperature Range: | - 10℃ To + 60°C |
| Storage Temperature Range: | - 40℃ To + 70℃ |
| ISO/IEC Compliance: | ISO/IEC 11801 |
| Notes: | Maximum Crush Resistance for Short Term: 4000N/100mm, Duration: 1min, Maximum Crush Resistance for Long Term: 2000N/100mm, Duration: 10min |
| Update and Revision: | Revision Number: 0.45 Revision Date: 04-15-2025 |
