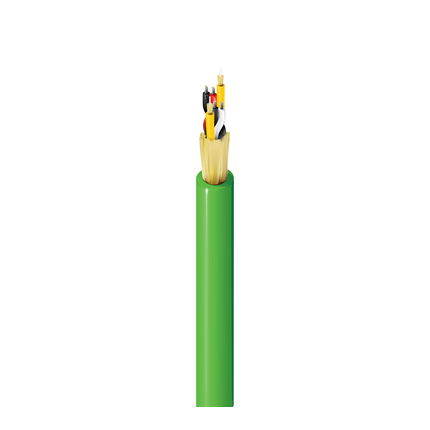

DHIP182USB02C - Indoor Digital Electricity Hybrid Cable, OS2, 2 Breakout Fibers, #18-2pr, CMP-OF

Indoor Digital Electricity Hybrid Cable, OS2, 2 Breakout Fibers, 3.0mm Sub-units, 2- 18 AWG Pairs, Plenum

Part Number: DHIP182USB02C

Product Overview

Suitable Applications: Indoor


Fiber Cable Construction
Fiber TypeFiber CountSubunit ColorSubunit Color 2
Fiber Color Coding: White
Buffer Specification
Buffer MaterialBuffer Diameter
PVC900 µm
Bulk Cable Weight: 60 lbs/1000ft

SubUnit Specifications

Fibers Per Subunit: 1
SubUnit Diameter: 0.118 in (3.0 mm)

Jacket Specifications

Outer Jacket Material
Nominal Diameter
0.352" (8.9mm)
Color: Apple Green
Number of Ripcords: 1

Optical Characteristics

Mode Field Diameter: 9.2
Fiber Core Diameter: 8.2/125 µm
Max Attenuation at 1310 nm: 0.5 dB/km
Max Attenuation at 1550 nm: 0.5 dB/km

Mechanical Characteristics

Mechanical Tests
Cable Min. Bend Radius Installation (Short Term)15x Cable OD
Cable Min. Bend Radius Operation (Long Term)10x Cable OD
Cable Max. Tensile Strength Installation (Short Term)2700 N (607 lbf)
Cable Max. Tensile Strength Operation (Long Term)810 N (182 lbf)

Temperature Range

Operating Temp Range: 0°C to +70°C
Installation Temp Range: 0°C to +60°C
Storage Temp Range: -40°C to +70°C


UL Rating/Flame Test: Plenum
NEC/(UL) Compliance: CMP-OF
TIA/EIA Compliance: ICEA S-120-742
REACH: Complies
RoHS: Complies


Update and Revision: Revision Number: 0.45 Revision Date: 08-20-2020
