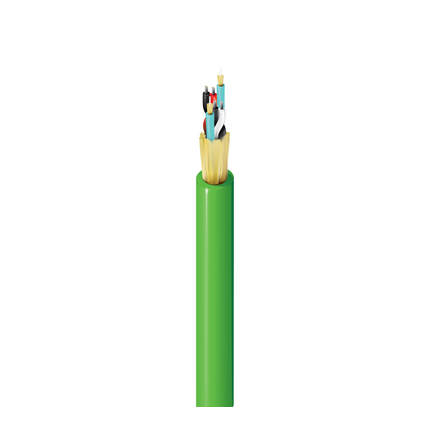

DHIP182U3B02C - Indoor Digital Electricity Hybrid Cable, OM3, 2 Breakout Fibers, #18-2pr, CMP-OF


Indoor Digital Electricity Hybrid Cable, OM3, 2 Breakout Fibers, 3.0mm Sub-units, 2- 18 AWG Pairs, Plenum

Part Number: DHIP182U3B02C

Product Overview

Environmental Space: Indoor
Suitable Applications: Distributed Antenna Systems (DAS), Passive Optical Network (PON), Wireless Access Points (WAP), Security (Cameras), Power over long distances

Construction

Fiber Cable Construction
Fiber TypeFiber CountSubunit ColorSubunit Color 2
OM32AquaAqua
Fiber Color Coding: TIA-598-D
Fiber Color Coding 2: Aqua #1, Aqua #2
Buffer Specification
Buffer MaterialBuffer Diameter
PVC - Polyvinyl Chloride900 µm
Bulk Cable Weight: 60 lbs/kft (90 kg/km)

SubUnit Specifications

Fibers Per Subunit: 1
Subunit Diameter: 0.118 in (3.0 mm)

Jacket Specifications

Conductor Count: 2
Outer Jacket Material
MaterialNominal Diameter
PVC - Polyvinyl Chloride0.352" (8.9mm)
Color: Apple Green
Number of Ripcords: 1
Nominal Diameter: 0.352 in (9.0 mm)

Optical Characteristics

Fiber Core Diameter: 50/125 µm
Max Attenuation at 1300 nm: 1.0 dB/km
Max Attenuation at 850 nm: 3.0 dB/km
Wavelength@Optical MM1: 850

Mechanical Characteristics

Crush Resistance: 220 N/cm
Mechanical Tests
DescriptionRequirement/Value
Cable Min. Bend Radius Installation (Short Term)15x Cable OD
Cable Min. Bend Radius Operation (Long Term)10x Cable OD
Cable Max. Tensile Strength Installation (Short Term)Error
Cable Max. Tensile Strength Operation (Long Term)Error

Temperature Range

Operating Temp Range: 0°C to +70°C
Installation Temp Range: 0°C to +60°C
Storage Temp Range: -40°C to +70°C

Standards

UL Rating/Flame Test: Plenum
NEC/(UL) Compliance: CMP-OF
TIA/EIA Compliance: ICEA S-120-742
REACH: Complies
RoHS: Complies

History

Update and Revision: Revision Number: 0.56 Revision Date: 06-18-2021
