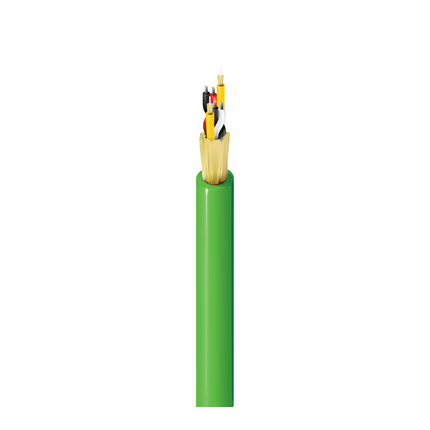

DHIP162USB02C - Indoor Digital Electricity Hybrid Cable, OS2, 2 Breakout Fibers, #16-2pr, CMP-OF


Indoor Digital Electricity Hybrid Cable, OS2, 2 Breakout Fibers, 3.0mm Sub-units, 2- 16 AWG Pairs, Plenum

Part Number: DHIP162USB02C

Product Overview

Suitable Applications: Indoor

Construction

Fiber Cable Construction
Fiber TypeFiber CountSubunit ColorSubunit Color 2
OS22YellowYellow
Fiber Color Coding: White
Fiber Color Coding 2: Yellow #1, Yellow #2
Buffer Specification
Buffer MaterialBuffer Diameter
PVC900 µm
Bulk Cable Weight: 73 lbs/1000ft

SubUnit Specifications

Fibers Per Subunit: 1
Subunit Diameter: 0.118 in (3.0 mm)

Jacket Specifications

Conductor Count: 2
Outer Jacket Material
Nominal Diameter
0.395" (10.0mm)
Color: Apple Green
Number of Ripcords: 1

Optical Characteristics

Mode Field Diameter: 9.2 μm
Fiber Core Diameter: 8.2/125 µm
Max Attenuation at 1310 nm: 0.5 dB/km
Max Attenuation at 1550 nm: 0.5 dB/km

Mechanical Characteristics

Mechanical Tests
DescriptionRequirement/Value
Cable Min. Bend Radius Installation (Short Term)15x Cable OD
Cable Min. Bend Radius Operation (Long Term)10x Cable OD
Cable Max. Tensile Strength Installation (Short Term)600 lbf (2700 N (NaN lbf)
Cable Max. Tensile Strength Operation (Long Term)180 lbf (810 N (NaN lbf)

Temperature Range

Operating Temp Range: 0°C to +70°C
Installation Temp Range: 0°C to +60°C
Storage Temp Range: -40°C to +70°C

Standards

UL Rating/Flame Test: Plenum
NEC/(UL) Compliance: CMP-OF
TIA/EIA Compliance: ICEA S-120-742
REACH: Complies
RoHS: Complies

History

Update and Revision: Revision Number: 0.49 Revision Date: 10-22-2020
