DEIP184F - Digital Electricity™, 4 Pr #18 Str TC, O/A Foil, Flamarrest® Jkt, CMP

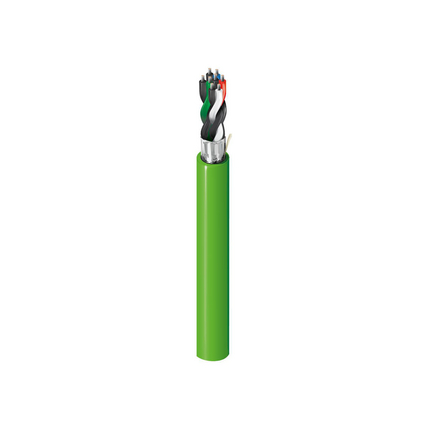

Digital Electricity™ Optimized Cable, 4 Twisted Pair 18 AWG (7 x 26) Stranded Tinned Copper, Flamarrest® Insulation, Overall Foil Shield, Flamarrest® Apple Green Jacket, Ripcord, CMP, 2000 Ft Reel

Product Overview

Suitable Applications: Indoor, Digital Electricity™, remote powering

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
187x26TC - Tinned Copper4
Total Number of Pairs: 4
Insulation
MaterialMaterial Trade NameNominal Wall Thickness
PVC - Polyvinyl ChlorideFlamarrest®0.009 in
Color Chart
NumberColor
1Black & Red
2Black & White
3Black & Green
4Black & Blue
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWG
TapeBi-Laminate (Alum+Poly)Beldfoil®100%TC - Tinned Copper24
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.316 in0.017 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
6.5 Ohm/1000ft15.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
39.75 pF/ft
Current
Max. Recommended Current [A]
5.6 Amps per Conductor at 25ºC (35°C Temperature Rise)
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 66 lbs/1000ft
Max. Pull Tension: 179.2 lbs
Min Bend Radius/Minor Axis: 3.125 in

Standards

NEC Articles: Article 800
NEC/(UL) Compliance: CMP
CEC/C(UL) Compliance: CMP

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU CE Mark: Yes
EU REACH SVHC Compliance (yyyy-mm-dd): 2020-01-27
EU RoHS Compliance Date (yyyy-mm-dd): 2020-01-27

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT6
UL Flammability: NFPA 262

Part Number

Variants
Item #ColorLength
DEIP184FApple Green2,000 ft

History

Update and Revision: Revision Number: 0.17 Revision Date: 09-22-2020
Date: 2020-01-27
