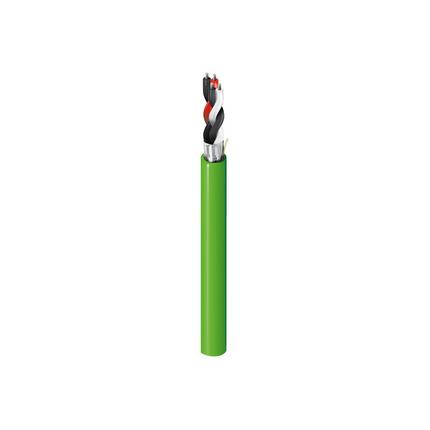

(109)Digital Electricity™ Optimized Cable, 2 Twisted Pair 18 AWG (7 x 26) Stranded Tinned Copper, Flamarrest® Insulation, Overall Foil Shield, Flamarrest® Apple Green Jacket, Ripcord, CL4P, CMP, 2000 Ft Reel
| Suitable Applications: | Digital Electricity™, Fault Managed Power Systems (FMPS), remote powering, indoor |
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 18 | 7x26 | TC - Tinned Copper | 2 |
| Total Number of Pairs: | 2 |
| Material | Material Trade Name | Nominal Wall Thickness |
|---|---|---|
| PVC - Polyvinyl Chloride | Flamarrest® | 0.009 in |
| Number | Color |
|---|---|
| 1 | Black & Red |
| 2 | Black & White |
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG |
|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | TC - Tinned Copper | 24 |
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.268 in | 0.017 in |
| Nominal Conductor DCR | Nominal Outer Shield DCR |
|---|---|
| 6.5 Ohm/1000ft | 15.6 Ohm/1000ft |
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 39.75 pF/ft | 71.5 pF/ft |
| Max. Recommended Current [A] |
|---|
| 6.4 Amps per Conductor at 25ºC (35°C Temperature Rise) |
| UL Voltage Rating |
|---|
| 450 V RMS |
| UL Temp Rating: | 75°C |
| Operating Temperature Range: | 0°C To +75°C |
| Bulk Cable Weight: | 38 lbs/1000ft |
| Max. Pull Tension: | 89.6 lbs |
| Min. Bend Radius/Minor Axis: | 2.625 in |
| NEC Articles: | Article 800 |
| NEC/(UL) Compliance: | CL4P-FMP (2.0A), CMP |
| CEC/C(UL) Compliance: | CMP |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/11/EC (BFR): | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): | Yes |
| EU CE Mark: | Yes |
| EU REACH SVHC Compliance (yyyy-mm-dd): | 2020-01-19 |
| Suitability - Indoor: | Yes |
| UL Flammability: | NFPA 262 |
| Item # | Color | Length |
|---|---|---|
| DEIP182F | Apple Green | 2,000 ft |
| Update and Revision: | Revision Number: 0.103 Revision Date: 12-22-2023 |
