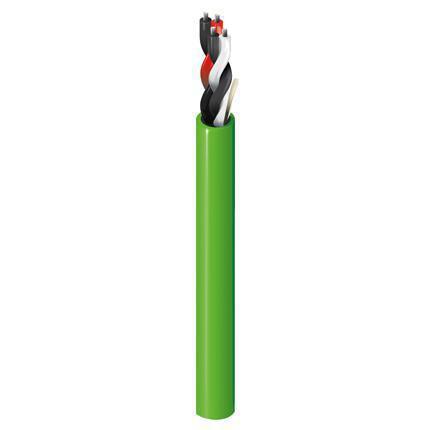

DEIP162U - Indoor Digital Electricity Copper Cable, #16-2pr, TC, LS-PVC, CMP, LS-PVC Jkt


Indoor Digital Electricity Copper Cable, 2-16 AWG Stranded (19x29) Tinned Copper Pairs with Flamarrest® insulation, Plenum-CMP, Flamarrest® Jacket with Ripcord

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
1619x29TC - Tinned Copper2
Conductor Count: 16
Total Number of Pairs: 2
Insulation
MaterialMaterial Trade NameNominal Wall Thickness
PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.011 in
Color Chart
NumberColor
1Black & Red
2Black & White
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC-LS - Polyvinyl Chloride (Low Smoke)0.326 in0.017 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
4.3 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
30 pF/ft
Current
Max. Recommended Current [A]
Per conductor for 35C temp. rise from 25C ambient: 8.75 A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 52 lbs/1000ft
Max Recommended Pulling Tension: 121.5 lbs
Min Bend Radius/Minor Axis: 3.25 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU REACH SVHC Compliance (yyyy-mm-dd): 2019-05-13
EU RoHS Compliance Date (yyyy-mm-dd): 2019-05-13

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT6
UL Flammability: NFPA 262

Part Number

Variants
Item #ColorLength
DEIP162UApple Green2,000 ft

History

Update and Revision: Revision Number: 0.29 Revision Date: 04-02-2020
Date: 2019-05-13
