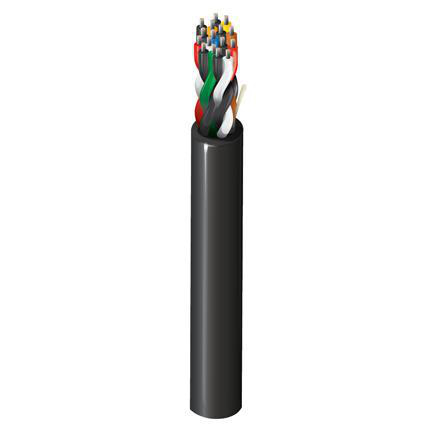

DEDN188U - Indoor/Outdoor Digital Electricity Copper Cable, #18-8pr, TC, PVC, CMG, PVC Jkt


Indoor/Outdoor Digital Electricity Copper Cable, 8-18 AWG Stranded (7x26) Tinned Copper Pairs, PVC insulation, Unshielded, PVC Jacket

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
187X26TC - Tinned Copper8
Conductor Count: 16
Total Number of Pairs: 8
Insulation
MaterialNominal Wall Thickness
PVC - Polyvinyl Chloride0.017 in
Color Chart
NumberColor
1Black & Red
2Black & White
3Black & Green
4Black & Blue
5Black & Yellow
6Black & Brown
7Black & Orange
8Red & White
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.520 in0.040 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
6.4 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
22 pF/ft
Current
Max. Recommended Current [A]
Per conductor for 35C temp. rise above 25C ambient: 4 A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 105°C
Operating Temp Range: -30°C To +105°C

Mechanical Characteristics

Bulk Cable Weight: 167 lbs/1000ft
Max Recommended Pulling Tension: 360 lbs
Min Bend Radius/Minor Axis: 5.2 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMG
CEC/C(UL) Specification: CMG
UL AWM Style: 2464

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU REACH SVHC Compliance (yyyy-mm-dd): 2019-05-13
EU RoHS Compliance Date (yyyy-mm-dd): 2019-05-13
CA Prop 65 (CJ for Wire & Cable): Yes

Suitability

Suitability - Indoor: Yes
Suitability - Outdoor: Yes
Suitability - Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
UL Flammability: UL 1685 FT4 Loading
IEEE Flammability: 1202

Part Number

Variants
Item #ColorLength
DEDN188UBlack2,000 ft

History

Update and Revision: Revision Number: 0.20 Revision Date: 08-22-2019
Date: 2019-05-13
