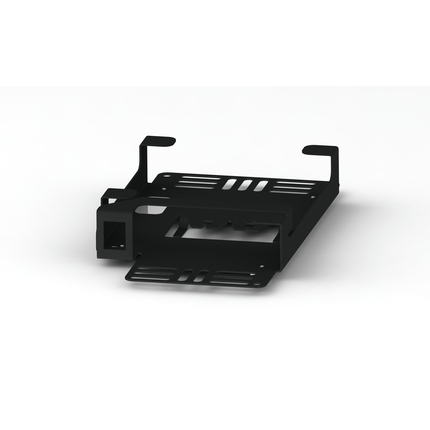

(4)DCX Zero U Tray, Small, Holds 3 Cutouts (1 Base-12 Cassette) with Magnets
| Suitable Applications: | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
| Weight: | 0.770 lbs |
| Height: | 1.530 in |
| Width: | 5.220 in |
| Depth: | 9.530 in |
| Max Capacity: | 1 Cassette (Base-12) and 1 Copper Connectors |
| Operating Temperature Range: | -10°C to +60°C |
| Storage Temperature Range: | -40°C to +70°C |
| Description | Material |
|---|---|
| Panel | Steel |
| TIA/EIA Compliance: | EIA/ECA 310 |
| MII Order #39 (China RoHS): | EUP 50 |
| Included Parts: | (2x) Velcro Cable Ties; (4x) Screws |
| Related Parts: | FX DCX Cassettes/Adapter Frames |
| Item # | Color |
|---|---|
| DCX-ZUTR-S | Black |
| Packaging: | Individually packaged in a cardboard box. |
| Notes: | For more information, please refer to the Quick Start Guide PX107082 on our web site at http://www.belden.com |
| Update and Revision: | Revision Number: 0.94 Revision Date: 12-12-2022 |
