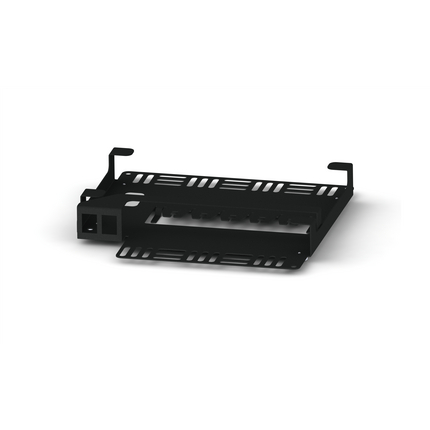

(10)DCX Zero U Tray, Large, Holds 6 Cutouts (2 Base-12 Cassettes) with Magnets
| Suitable Applications: | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
| Weight: | 1.250 lbs |
| Height: | 1.530 in |
| Width: | 9.420 in |
| Depth: | 9.530 in |
| Max Capacity: | 2 Cassettes (Base-12) and 2 Copper Connectors |
| Operating Temp Range: | -10°C to +60°C |
| Storage Temp Range: | -40°C to +70°C |
| Description | Material |
|---|---|
| Panel | Steel |
| TIA/EIA Compliance: | EIA/ECA 310 |
| EU RoHS Compliance Date (yyyy-mm-dd): | 2013-01-01 |
| MII Order #39 (China RoHS): | EUP 50 |
| Included Parts: | (2x) Velcro Cable Ties; (4x) Screws |
| Related Parts: | FX DCX Cassettes/Adapter Frames |
| Item # | Color |
|---|---|
| (IT_DCX-ZUTR-L_BPCSRI_Richmond) | Black |
| Packaging: | Individually packaged in a cardboard box. |
| Notes: | For more information, please refer to the Quick Start Guide PX107082 on our web site at http://www.belden.com |
| Update and Revision: | Revision Number: 0.8 Revision Date: 12-02-2020 |
