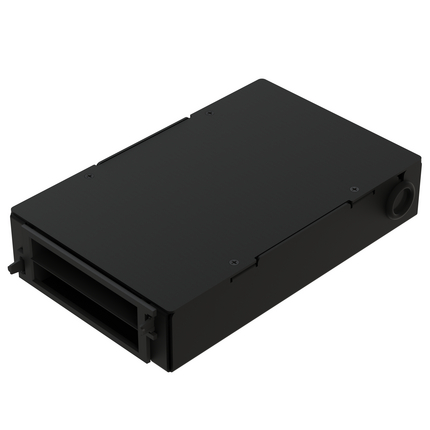

(4)DCX Wall Mount Housing, For 2 x 6-Port Modules, Black
| Environmental Space: | Indoor |
| Suitable Applications: | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room |
| Weight: | 2.08 lbs |
| Overall Height: | 1.65 in |
| Overall Width: | 5.42 in |
| Overall Length: | 8.61 in |
| Max Capacity: | 2 DCX cassettes or frames with 6 duplex ports each |
| Operating Temperature Range: | -10°C To +60°C |
| Installation Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Description | Material | Color |
|---|---|---|
| Wall Mount | Steel | Black |
| Wall Mount Cover | Steel | Black |
| Grommet | Elastomer | Black |
| Frame | Plastic | Black |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Included Parts: | 1x I.D. label; 1x Adapter Frame Blank; 4x Countersunk Screw; 4x Wood Screws; 2x Self-Locking Cable Ties; 1x Quick Installation Guide |
| Related Parts: | DCX Frames, Cassettes |
| Packaging: | Individually packaged in a cardboard box. |
| Notes: | For proper installation refer to Installation Guide PX107861 included with the product |
| Update and Revision: | Revision Number: 0.6 Revision Date: 03-25-2026 |
