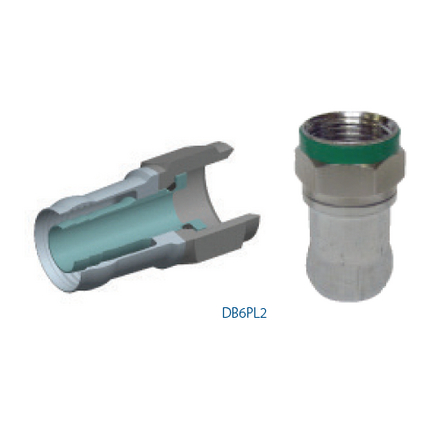

(13)Double Bubble RG6 "F" Plenum connector, fits most plenum RG6 coaxial cables. Compression design that molds the metal completely around the cable.
| Suitable Applications: | CCTV, Security Cameras, Video |
| Conductor Size: | 18 AWG |
| Packaging: | 25 Pack |
| Number of Pieces: | 1 |
| Material |
|---|
| Nickel plated Brass |
| Nominal Characteristic Impedance |
|---|
| 75 Ohms |
| Frequency [MHz] |
|---|
| DC-1 GHz |
| DC-2 GHz |
| DC-3 GHz |
| Footprint/Type: | Coax |
| Connector Interface Type: | F |
| Gender: | Male - plug |
| Connector Series Name: | Double Bubble |
| Locking: | No |
| Tool Compatibility: | CPLCRBC-BR (compression), PS59/6/RGB (strip) |
| Termination Type: | Compression |
| Cable Center Conductor Diameter Limits: | .0399 - .0418 inch |
| Cable Dielectric Diameter Limits: | .165 - .172 inch |
| Cable Outer Jacket Diameter Limits: | .220 - .250 inch |
| RG Type: | 6/U Type |
| Series Type: | 6/U |
| EU CE Mark: | Yes |
| Suitability - Indoor: | Yes |
| Item # | Color | UPC |
|---|---|---|
| DB6PL2-25 | No Color | 845671000405 |
| Patent: | https://www.belden.com/resources/patents |
| Update and Revision: | Revision Number: 0.33 Revision Date: 07-11-2019 |
