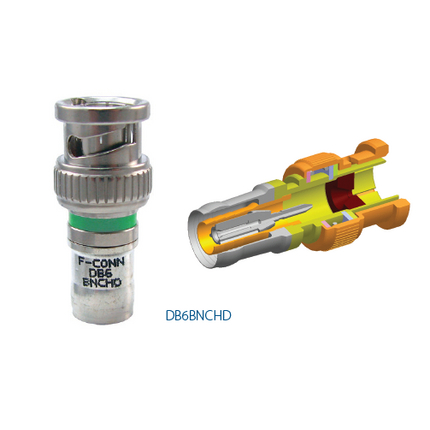

DB6BNCHD-25 - Double Bubble RG-6 HD BNC Coax Compression Connector

Double Bubble RG6 Universal High Definition BNC connector, fits standard, tri-shield and quad-shield coaxial cable. Compression design that molds the metal completely around the cable. 25 per Pack

Product Overview

Suitable Applications: CCTV, Security Cameras, Video

Physical Characteristics (Overall)

Packaging: 25 Pack
Number of Pieces: 1


Nickel plated Brass
Gold Plated

Electrical Characteristics

Nominal Characteristic Impedance
75 Ohm
Return Loss (RL)
Frequency [MHz]
DC-1 GHz -33 dB Return Loss 1.07 VSWR
DC-2 GHz -32 dB Return Loss 1.10 VSWR
DC-3 GHz -31 dB Return Loss 1.16 VSWR

Mechanical Characteristics

Footprint/Type: Coax
Connector Interface Type: BNC
Gender: Male - plug
Connector Series Name: Double Bubble
Color Band: Green
Locking: No
Tool Compatibility: CPLCRBC-BR (compression), PS59/6/RGB (strip)
Termination Type: Compression
Cable Center Conductor Diameter Limits: .0399 - .0418 inch
Cable Dielectric Diameter Limits: .180 - .193 inch
Cable Outer Jacket Diameter Limits: .265 - .305 inch


RG Type: 6/U Type
Series Type: 6/U

Applicable Environmental and Other Programs

EU CE Mark: Yes


Suitability - Indoor: Yes
Suitability - Outdoor: Yes

Part Number

Item #Color
DB6BNCHD-25No Color
Patent: This product has one or more applicable patents. More information on patents can be found at


Update and Revision: Revision Number: 0.39 Revision Date: 07-09-2020
