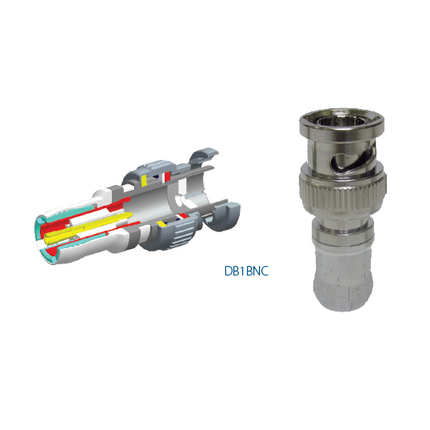

DB1BNC-25 - Double Bubble Mini RGB BNC Coax Compression Connector 25-26 AWG


Double Bubble Mini (25-26 AWG) BNC connector, fits most brands of RGB/mini coaxial cable. Compression design that molds the metal completely around the cable. 25 per Pack

Product Overview

Suitable Applications: CCTV, Security Cameras, Video

Physical Characteristics (Overall)

Packaging: 25 Pack
Number of Pieces: 1

Connectors

Materials
Material
Nickel plated Brass
Gold Plated

Electrical Characteristics

Return Loss (RL)
Frequency [MHz]
DC-1 GHz 36 dB Return Loss 1.03 VSWR
DC-2 GHz 32 dB Return Loss 1.05 VSWR
DC-3 GHz 26 dB Return Loss 1.10 VSWR

Mechanical Characteristics

Footprint/Type: Coax
Connector Interface Type: BNC
Gender: Male - plug
Connector Series Name: Double Bubble
Locking: No
Tool Compatibility: CPLCRBC-BR (compression), PS59/6/RGB (strip)
Termination Type: Compression
Cable Center Conductor Diameter Limits: .015 - .025 inch
Cable Dielectric Diameter Limits: .065 - .078 inch
Cable Outer Jacket Diameter Limits: .095 - .110 inch

Applicable Environmental and Other Programs

Environmental Space: Indoor/Outdoor
EU CE Mark: Yes

Suitability

Suitability - Indoor: Yes
Suitability - Outdoor: Yes

Part Number

Variants
Item #ColorUPC
DB1BNC-25No Color845671001761
Patent: https://www.belden.com/resources/patents

History

Update and Revision: Revision Number: 0.56 Revision Date: 01-31-2020
