(4)| Benefits: | Provide horizontal cable lacing provisions while keeping the cabling distanced from equipment installed in a rack or cabinet |
| Environmental Space: | Indoor |
| Width: | 19.0 in |
| Mounting: | Rack Mount 19” Horizontal |
| Finish: | Black Powdercoat Finish |
| Material: | Steel |
| Color: | Black |
| Included Parts: | Mounting hardware |
| Packaging: | Individual bag, bulk packaged |
| Item # | Depth | Description |
|---|---|---|
| XCS-00-01 | .50 in | 19" Rackmount Cable Standoff with Multiple Obrounds for Lacing, No Offset |

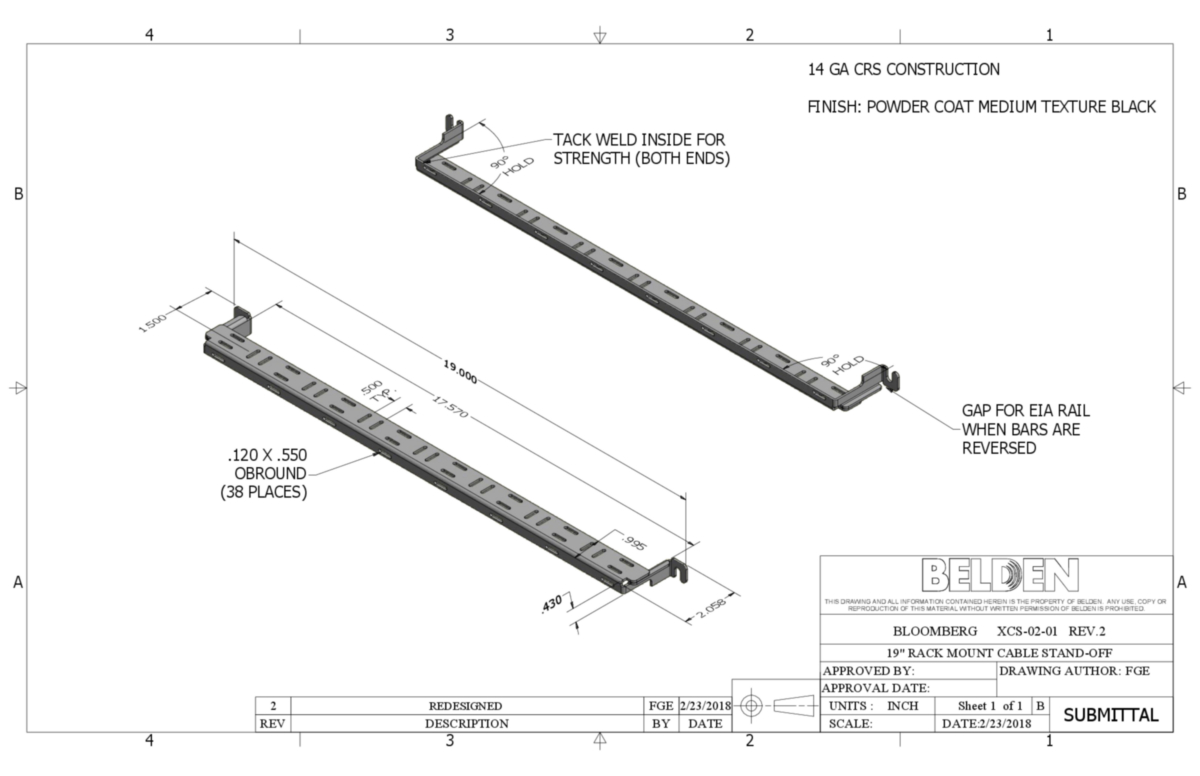

| XCS-02-01 | 2.0 in | 19" Rackmount Cable Standoff with Multiple Obrounds for Lacing, 2" Offset |
| XCS-04-01 | 4.0 in | 19" Rackmount Cable Standoff with Multiple Obrounds for Lacing, 4" Offset |

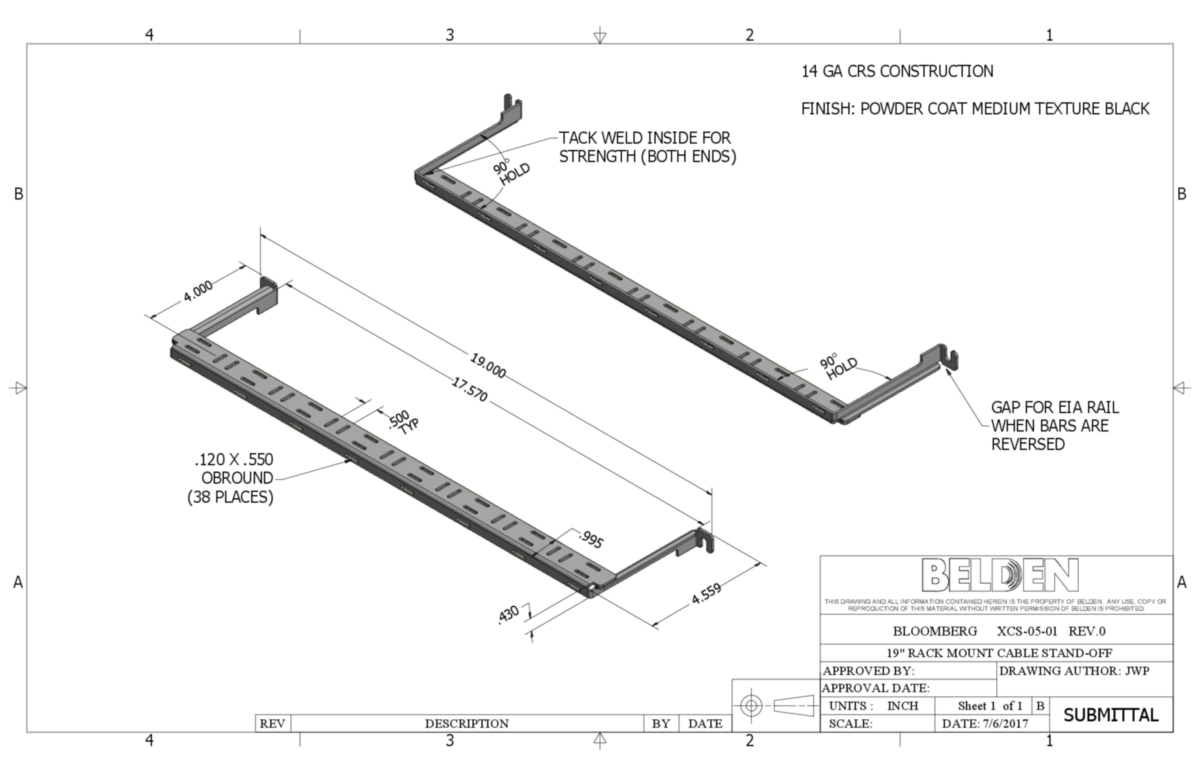

| XCS-05-01 | 5.0 in | 19" Rackmount Cable Standoff with Multiple Obrounds for Lacing, 5" Offset |
| XCS-06-01 | 6.0 in | 19" Rackmount Cable Standoff with Multiple Obrounds for Lacing, 6" Offset |

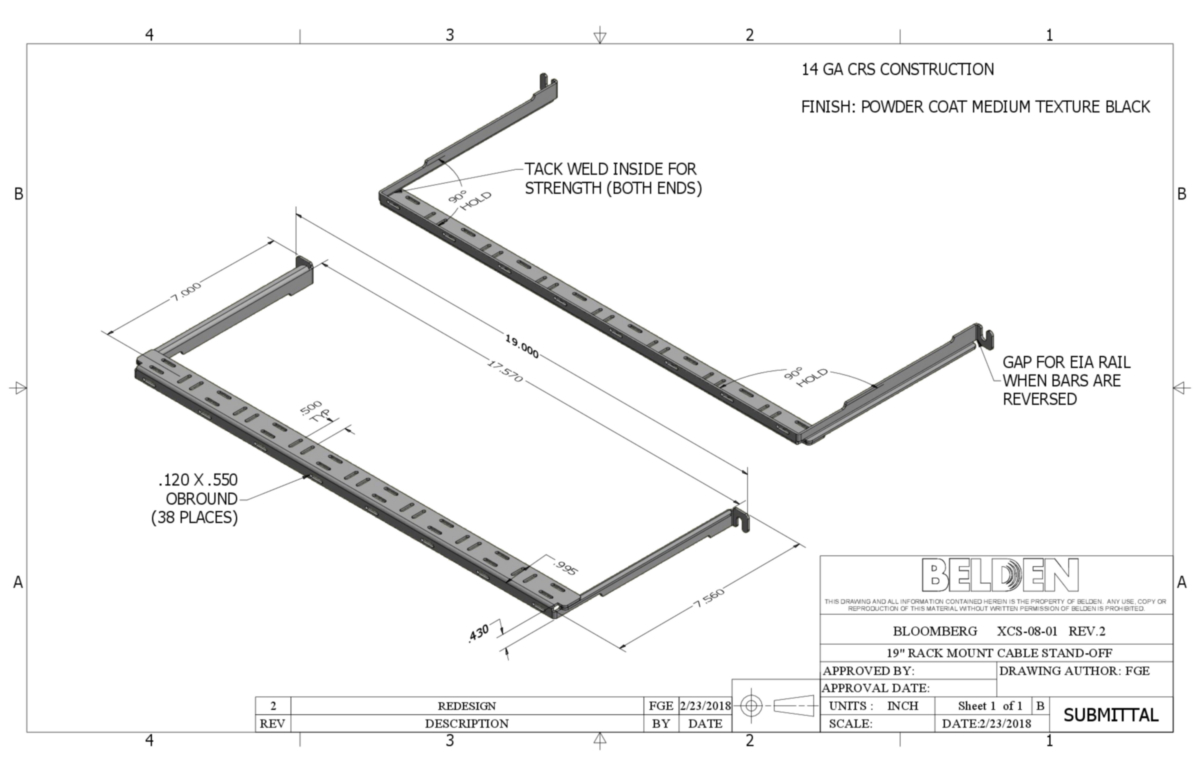

| XCS-08-01 | 8.0 in | 19" Rackmount Cable Standoff with Multiple Obrounds for Lacing, 8" Offset |
| Update and Revision: | Revision Number: 0.27 Revision Date: 11-09-2022 |
