(4)Cable Runway Corner Bracket

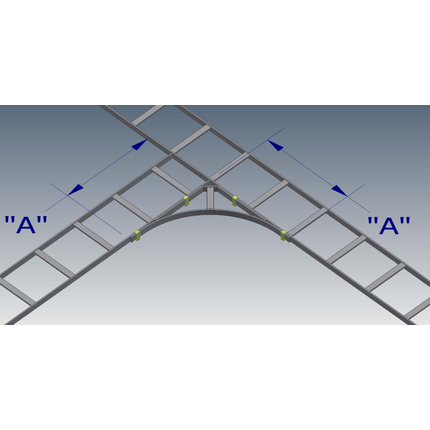

| Product Overview: | Creates a radius for 90° intersection of cable runway formed when two or more pieces of cable runway are connected together with the Junction-Splice Kit (BLJSU302-15B). |
| Benefits: | Single-piece welded assembly fabricated from .375" x 1.5" x .065" wall rectangular steel tubing., Easy installation, brackets/hardware included. |
| Environmental Space: | Indoor |
| Finish: | Black Powdercoat Finish |
| Material: | Steel |
| Color: | Black |
| Packaging: | Individually Boxed |
| Part # | Description | Color | Lead time | Shipping Weight |
|---|---|---|---|---|
| BLCSB959-15B | 15" Cable Runway Corner Bracket | Black | Black lead time (14 day ARO) | 4.0 lb |
| BLCSB959-24B | 24" Cable Runway Corner Bracket | Black | Black lead time (14 day ARO) | 6.0 lb |
| BLCSB959-15W | 15" Cable Runway Corner Bracket | White | White extended lead time will be (6-8 weeks ARO) | 4.0 lb |
| BLCSB959-24W | 24" Cable Runway Corner Bracket | White | White extended lead time will be (6-8 weeks ARO) | 6.0 lb |
| Update and Revision: | Revision Number: 0.147 Revision Date: 11-09-2022 |
