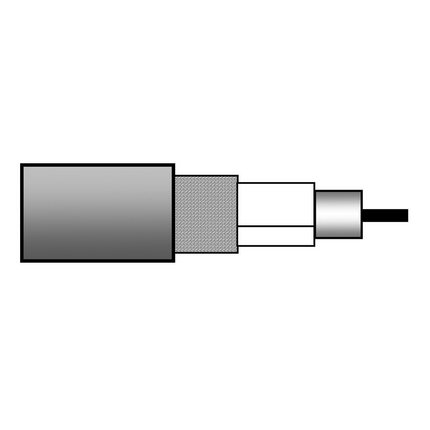

(4)Broadband Coax, 16 AWG Solid Bare Copper Conductor, PE Insulation, Copper Foil + 50% Bare Copper Braid Shield, PVC Jacket.
Life Cycle Status: Discontinued
| Suitable Applications: | Broadband, Cable Television (CATV), RF drop cable, Over-The-Air (OTA) antennas |
| RG Type: | 7/U Type |
| No. of Elements | Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|---|
| 1 | 16 AWG | Solid | 1.25 mm | BC - Bare Copper |
| Element | Material | Nom. Insulation Diameter |
|---|---|---|
| Insulated Conductor | PE - Polyethylene (Foam) | 5.4 mm (0.21 in) |
| Layer | Outer Shield Type | Material | Coverage |
|---|---|---|---|
| 1 | Tape | Bi-Laminate (Bare Copper+Poly) | 100% |
| 2 | Braid | Bare Copper (BC) | 50% |
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 7.8 mm |
| Regularity of Impedance: | Min. 40 or max. 1% dB |
| Frequency | Min. Return Loss |
|---|---|
| 5-470 MHz | 23 dB |
| 470 - 1000 MHz | 20 dB |
| 1000 - 2000 MHz | 18 dB |
| 2000 - 3000 MHz | 16 dB |
| Table Notes: | In each frequency band, 3 peak values up to 4 dB lower are allowed |
| Frequency | Nom. Attenuation |
|---|---|
| 5 MHz | 1.5 dB/100m |
| 50 MHz | 3.5 dB/100m |
| 100 MHz | 5 dB/100m |
| 200 MHz | 7.5 dB/100m |
| 460 MHz | 11.5 dB/100m |
| 800 MHz | 14.9 dB/100m |
| 860 MHz | 15.5 dB/100m |
| 1000 MHz | 17 dB/100m |
| 1750 MHz | 22.8 dB/100m |
| 2150 MHz | 26 dB/100m |
| 2400 MHz | 28 dB/100m |
| 3000 MHz | 32 dB/100m |
| Max. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|
| 16 Ohm/km (4.9 Ohm/1000ft) | 13.5 Ohm/km (4.11 Ohm/1000ft) | 54 pF/m (16 pF/ft) | 75 Ohm | 81% |
| Frequency | Min. Screening Attenuation |
|---|---|
| 30 - 1000 MHz | 75 dB |
| 1000 - 2000 MHz | |
| 2000 - 3000 MHz |
| Operating | Installation | Storage |
|---|---|---|
| -40°C To +70°C | -5°C To +50°C | -40°C To +70°C |
| Stationary Min. |
|---|
| 40 mm (1.6 in) |
| Environmental Suitability: | Indoor - Euroclass Eca |
| Flammability / Reaction to Fire: | IEC 60332-1-2 |
| CPR Compliance: | CPR Euroclass: Eca |
| CENELEC Compliance: | EN 50117-1, EN 50117-9-2, EN 50290-2-20 |
| European Directive Compliance: | EU CE Mark |
| UK Regulation Compliance: | UKCA Mark |
| Update and Revision: | Revision Number: 0.263 Revision Date: 07-29-2024 |
