CAT6+ UTP CMR TRACEABLE CORDS - CAT6+ UTP CMR Traceable Cords

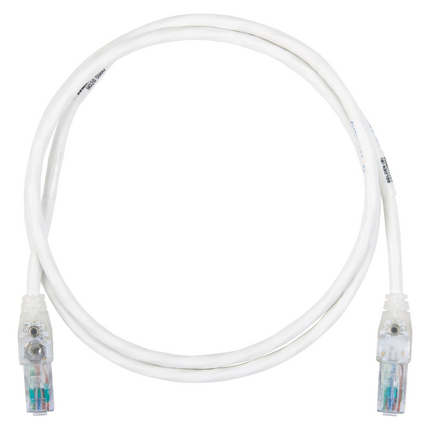

CAT6+ UTP CMR Traceable Cords

Data Sheet
Share

Product Overview

Suitable Applications: IBDN System 4800, 3600 and 2400, TIA Category 6, ISO Class E, 1000BASE-T, 20 and 40 sec. flashing high intensity LED Battery operated (included), push button activated.

Physical Characteristics (Overall)

Total Number of Pairs: 4
Overall Nominal Diameter: 0.238 in
Wiring Scheme: T568A/B-T568A/B
Packaging: Individually packaged in a clear plastic bag.

Connectors

Materials
DescriptionMaterialColor
BootElastomerTranslucent
ConductorBC - Bare Copper
Front ConnectionBlades Phosphor Bronze with 50u inch Gold over Nickel Plating
Inner JacketPVC - Polyvinyl Chloride
InsulationPO - Polyolefin
Outer JacketPVC - Polyvinyl Chloride

Electrical Characteristics

Current Rating: 1.500 A
Insulation Resistance: 500 M-Ohm Minimum
Max Contact Resistance: 20 mOhm

Temperature Range

Installation Temp Range: -10°C To +60°C
Storage Temp Range: -40°C To +70°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Min Bend Radius (Overall Cable): 1.040 in
Plug /Jack Compatibility: RJ45
Termination Interface
ConnectionDurabilities
Mated Connection750 Cycles

Standards

UL Rating: Riser
Data Category: Category 6+
TIA/EIA Compliance: Category 6 - TIA 568-C.2, Class E - ISO/IEC 11801:2002 Ed.2 Amendment 2
Other Compliance: FCC Part 68, Subpart F, IEC 60603-7

Applicable Environmental and Other Programs

Environmental Space: Riser
EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-01-01
MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing: c(UL)us Listed

Part Number

Related Parts: CAT6+ Modular Jacks and Couplers, CAT6+ Patch Panels
Variants
Item #ColorLength
C6T1100001Black1 ft
C6T1100002Black2 ft
C6T1100003Black3 ft
C6T1100004Black4 ft
C6T1100005Black5 ft
C6T1100006Black6 ft
C6T1100007Black7 ft
C6T1100008Black8 ft
C6T1100009Black9 ft
C6T1100010Black10 ft
C6T1100011Black11 ft
C6T1100012Black12 ft
C6T1100013Black13 ft
C6T1100014Black14 ft
C6T1100015Black15 ft
C6T1100020Black20 ft
C6T1100025Black25 ft
C6T1100030Black30 ft
C6T1100035Black35 ft
C6T1100040Black40 ft
C601106004Blue4 ft
C6T1106001Blue1 ft
C6T1106002Blue2 ft
C6T1106003Blue3 ft
C6T1106004Blue4 ft
C6T1106006Blue6 ft
C6T1106008Blue8 ft
C6T1106009Blue9 ft
C6T1106010Blue10 ft
C6T1106011Blue11 ft
C6T1106012Blue12 ft
C6T1106013Blue13 ft
C6T1106014Blue14 ft
C6T1106015Blue15 ft
C6T1106016Blue16 ft
C6T1106020Blue20 ft
C6T1106025Blue25 ft
C6T1106030Blue30 ft
C6T1106035Blue35 ft
C6T1106040Blue40 ft
C6T1106050Blue50 ft
C6T1106120Blue120 ft
C6T1106160Blue160 ft
C6T1108001Gray1 ft
C6T1108002Gray2 ft
C6T1108003Gray3 ft
C6T1108005Gray5 ft
C6T1108006Gray6 ft
C6T1108007Gray7 ft
C6T1108008Gray8 ft
C6T1108009Gray9 ft
C6T1108010Gray10 ft
C6T1108011Gray11 ft
C6T1108012Gray12 ft
C6T1108013Gray13 ft
C6T1108014Gray14 ft
C6T1108015Gray15 ft
C6T1108020Gray20 ft
C6T1108025Gray25 ft
C6T1108040Gray40 ft
C6T1105001Green1 ft
C6T1105002Green2 ft
C6T1105003Green3 ft
C6T1105004Green4 ft
C6T1105005Green5 ft
C6T1105006Green6 ft
C6T1105007Green7 ft
C6T1105008Green8 ft
C6T1105009Green9 ft
C6T1105010Green10 ft
C6T1105011Green11 ft
C6T1105012Green12 ft
C6T1105013Green13 ft
C6T1105014Green14 ft
C6T1105015Green15 ft
C6T1105020Green20 ft
C6T1105025Green25 ft
C6T1105030Green30 ft
C6T1105040Green40 ft
C6T1103001Orange1 ft
C6T1103002Orange2 ft
C6T1103003Orange3 ft
C6T1103004Orange4 ft
C6T1103005Orange5 ft
C6T1103006Orange6 ft
C6T1103007Orange7 ft
C6T1103008Orange8 ft
C6T1103009Orange9 ft
C6T1103010Orange10 ft
C6T1103011Orange11 ft
C6T1103012Orange12 ft
C6T1103013Orange13 ft
C6T1103014Orange14 ft
C6T1103015Orange15 ft
C6T1103020Orange20 ft
C6T1103025Orange25 ft
C6T1103032Orange32 ft
C6T1107004Purple4 ft
C6T1107007Purple7 ft
C6T1107010Purple10 ft
C6T1107030Purple30 ft
C6T1102001Red1 ft
C6T1102002Red2 ft
C6T1102003Red3 ft
C6T1102004Red4 ft
C6T1102005Red5 ft
C6T1102006Red6 ft
C6T1102007Red7 ft
C6T1102008Red8 ft
C6T1102009Red9 ft
C6T1102010Red10 ft
C6T1102011Red11 ft
C6T1102012Red12 ft
C6T1102013Red13 ft
C6T1102014Red14 ft
C6T1102015Red15 ft
C6T1102016Red16 ft
C6T1102020Red20 ft
C6T1102025Red25 ft
C6T1102030Red30 ft
C6T1102035Red35 ft
C6T1112003TIA Red3 ft
C6T1112006TIA Red6 ft
C6T1112007TIA Red7 ft
C6T1112015TIA Red15 ft
C6T1112025TIA Red25 ft
C6T1109001White1 ft
C6T1109002White2 ft
C6T1109003White3 ft
C6T1109004White4 ft
C6T1109005White5 ft
C6T1109006White6 ft
C6T1109007White7 ft
C6T1109008White8 ft
C6T1109009White9 ft
C6T1109010White10 ft
C6T1109011White11 ft
C6T1109012White12 ft
C6T1109013White13 ft
C6T1109014White14 ft
C6T1109015White15 ft
C6T1109020White20 ft
C6T1109025White25 ft
C6T1109050White50 ft
C6T1104001Yellow1 ft
C6T1104002Yellow2 ft
C6T1104003Yellow3 ft
C6T1104004Yellow4 ft
C6T1104005Yellow5 ft
C6T1104006Yellow6 ft
C6T1104007Yellow7 ft
C6T1104008Yellow8 ft
C6T1104009Yellow9 ft
C6T1104010Yellow10 ft
C6T1104011Yellow11 ft
C6T1104012Yellow12 ft
C6T1104013Yellow13 ft
C6T1104014Yellow14 ft
C6T1104015Yellow15 ft
C6T1104020Yellow20 ft
C6T1104025Yellow25 ft

Product Notes

Labeling: Belden Part Number, Performance Acronym, Wiring Scheme and Cord Length.

History

Update and Revision: Revision Number: 0.155 Revision Date: 01-31-2020
RoHS Documentation
Date: 2006-01-01
