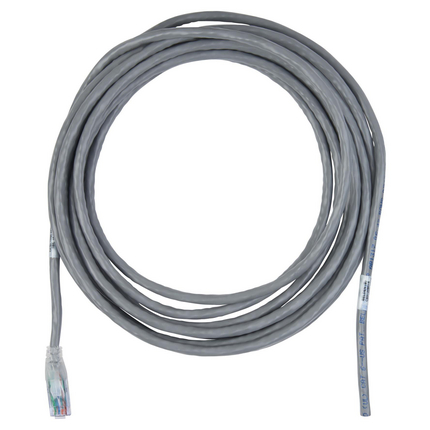

CAT6+ UTP CMR PIGTAILS - CAT6+ UTP CMR Pigtails


CAT6+ UTP CMR Pigtails

Product Overview

Environmental Space: Riser
Suitable Applications: IBDN System 4800, 3600 and 2400, TIA Category 6, ISO Class E, 1000BASE-T

Physical Characteristics (Overall)

Total Number of Pairs: 4
Overall Nominal Diameter: 0.238 in
Packaging: Individually packaged in a clear plastic bag.

Connectors

Materials
DescriptionMaterialColor
BootElastomerTranslucent
ConductorBC - Bare Copper
Front ConnectionBlades Phosphor Bronze with 50u inch Gold over Nickel Plating
Inner JacketPVC - Polyvinyl Chloride
InsulationPO - Polyolefin
Outer JacketPVC - Polyvinyl Chloride

Electrical Characteristics

Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
Current Rating: 1.500 A
Insulation Resistance: 500 M-Ohm Minimum
Max Contact Resistance: 20 mOhm

Temperature Range

Installation Temp Range: -10°C To +60°C
Storage Temp Range: -40°C To +70°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Min Bend Radius (Overall Cable): 1.040 in
Plug /Jack Compatibility: RJ45
Termination Interface
ConnectionDurabilities
Mated Connection750 Cycles

Standards

UL Rating: Riser
Data Category: Category 6+
Telecommunications Standards: Category 6 - TIA 568-C.2, Class E - ISO/IEC 11801:2002 Ed.2 Amendment 2
Other Standards: FCC Part 68, Subpart F, IEC 60603-7

Applicable Environmental and Other Programs

EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-01-01
MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing: c(UL)us Listed

Part Number

Related Parts: CAT6+ Modular Jacks and Couplers, CAT6+ Patch Panels, GigaBIX Connectors
Variants
Item #ColorLength
C631206020Blue20 ft
C631206025Blue25 ft
C631206030Blue30 ft
C631206035Blue35 ft
C631206040Blue40 ft
C631206050Blue50 ft
C631206055Blue55 ft
C631206060Blue60 ft
C631206075Blue75 ft
C631206080Blue80 ft
C631206100Blue100 ft
C631306015Blue15 ft
C631306020Blue20 ft
C631306025Blue25 ft
C631306035Blue35 ft
C631306045Blue45 ft
C631306050Blue50 ft
C631306060Blue60 ft
C631306070Blue70 ft
C631306075Blue75 ft
C631306080Blue80 ft
C631306082Blue82 ft
C631306085Blue85 ft
C631306100Blue100 ft
C631306200Blue200 ft
C631208007Gray7 ft
C631208010Gray10 ft
C631208015Gray15 ft
C631208020Gray20 ft
C631208025Gray25 ft
C631208030Gray30 ft
C631208035Gray35 ft
C631208040Gray40 ft
C631208045Gray45 ft
C631208050Gray50 ft
C631208060Gray60 ft
C631208065Gray65 ft
C631208070Gray70 ft
C631208075Gray75 ft
C631208080Gray80 ft
C631208085Gray85 ft
C631208100Gray100 ft
C631208110Gray110 ft
C631208120Gray120 ft
C631208156Gray156 ft
C631208160Gray160 ft
C631308007Gray7 ft
C631308010Gray10 ft
C631308015Gray15 ft
C631308020Gray20 ft
C631308025Gray25 ft
C631308030Gray30 ft
C631308035Gray35 ft
C631308050Gray50 ft
C631308060Gray60 ft
C631308075Gray75 ft
C631308100Gray100 ft
C631308156Gray156 ft
C631308160Gray160 ft
C631205020Green20 ft
C631205025Green25 ft
C631205035Green35 ft
C631209050None50 ft
C631309050None50 ft
C631303030Orange30 ft
C631202025Red25 ft
C631202050Red50 ft
C631202075Red75 ft
C631302025Red25 ft
C631209010White10 ft
C631209015White15 ft
C631209020White20 ft
C631209025White25 ft
C631209035White35 ft
C631209060White60 ft
C631209075White75 ft
C631209090White90 ft
C631209100White100 ft
C631209156White156 ft
C631309004White4 ft
C631309007White7 ft
C631309015White15 ft
C631309020White20 ft
C631309025White25 ft
C631309035White35 ft
C631309075White75 ft
C631309100White100 ft
C631204015Yellow15 ft
C631204007Yellow7 ft
C631204010Yellow10 ft
C631204020Yellow20 ft
C631204025Yellow25 ft
C631204035Yellow35 ft
C631204050Yellow50 ft
C631204075Yellow75 ft
C631304020Yellow20 ft
C631304025Yellow25 ft
C631304030Yellow30 ft
C631304050Yellow50 ft

Product Notes

Labeling: Belden Part Number, Performance Acronym, Wiring Scheme and Cord Length.

History

Update and Revision: Revision Number: 0.163 Revision Date: 07-11-2019
Date: 2006-01-01
