CAT6+ UTP CMR BONDED PIGTAILS - CAT6+ UTP CMR Bonded Pigtails

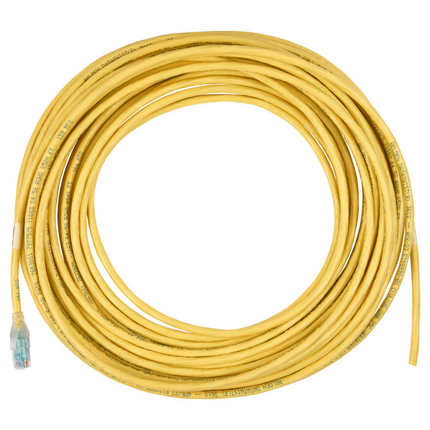

CAT6+ UTP CMR Bonded Pigtails

Product Overview

Suitable Applications: IBDN System 4800, 3600 and 2400, TIA Category 6, ISO Class E, 1000BASE-T

Physical Characteristics (Overall)

Total Number of Pairs: 4
Overall Nominal Diameter: 0.238 in
Packaging: Individually packaged in a clear plastic bag.

Connectors

Materials
DescriptionMaterialColor
BootElastomerTranslucent
ConductorBC - Bare Copper
Front ConnectionBlades Phosphor Bronze with 50u inch Gold over Nickel Plating
Inner JacketPVC - Polyvinyl Chloride
InsulationPO - Polyolefin
Outer JacketPVC - Polyvinyl Chloride

Electrical Characteristics

Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
Current Rating: 1.500 A
Insulation Resistance: 500 M-Ohm Minimum
Max Contact Resistance: 20 mOhm

Temperature Range

Installation Temp Range: -10°C To +60°C
Storage Temp Range: -40°C To +70°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Min Bend Radius (Overall Cable): 1.040 in
Plug /Jack Compatibility: RJ45
Termination Interface
ConnectionDurabilities
Mated Connection750 Cycles

Standards

UL Rating: Riser
Data Category: Category 6+
TIA/EIA Compliance: Category 6 - TIA 568-C.2, Class E - ISO/IEC 11801:2002 Ed.2 Amendment 2
Other Compliance: FCC Part 68, Subpart F, IEC 60603-7

Applicable Environmental and Other Programs

Environmental Space: Riser
EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-01-01
MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing: c(UL)us Listed

Part Number

Related Parts: CAT6+ Modular Jacks and Couplers, CAT6+ Patch Panels, GigaBIX Connectors
Variants
Item #ColorLength
C601200015Black15 ft
C601200020Black20 ft
C601200025Black25 ft
C601200035Black35 ft
C601200050Black50 ft
C601200075Black75 ft
C601200100Black100 ft
C601300015Black15 ft
C601300020Black20 ft
C601300025Black25 ft
C601300035Black35 ft
C601300050Black50 ft
C601300075Black75 ft
C601300100Black100 ft
C601206015Blue15 ft
C601206020Blue20 ft
C601206025Blue25 ft
C601206035Blue35 ft
C601206050Blue50 ft
C601206075Blue75 ft
C601206100Blue100 ft
C601306015Blue15 ft
C601306020Blue20 ft
C601306025Blue25 ft
C601306030Blue30 ft
C601306035Blue35 ft
C601306040Blue40 ft
C601306045Blue45 ft
C601306050Blue50 ft
C601306075Blue75 ft
C601306082Blue82 ft
C601306100Blue100 ft
C601306200Blue200 ft
C601208010Gray10 ft
C601208015Gray15 ft
C601208020Gray20 ft
C601208025Gray25 ft
C601208030Gray30 ft
C601208035Gray35 ft
C601208050Gray50 ft
C601208060Gray60 ft
C601208065Gray65 ft
C601208075Gray75 ft
C601208085Gray85 ft
C601208100Gray100 ft
C601208130Gray130 ft
C601308007Gray7 ft
C601308015Gray15 ft
C601308020Gray20 ft
C601308025Gray25 ft
C601308030Gray30 ft
C601308035Gray35 ft
C601308050Gray50 ft
C601308060Gray60 ft
C601308075Gray75 ft
C601308100Gray100 ft
C601308130Gray130 ft
C601205015Green15 ft
C601205020Green20 ft
C601205025Green25 ft
C601205035Green35 ft
C601205050Green50 ft
C601205075Green75 ft
C601205100Green100 ft
C601305015Green15 ft
C601305020Green20 ft
C601305025Green25 ft
C601305035Green35 ft
C601305050Green50 ft
C601305075Green75 ft
C601305100Green100 ft
C601202020Red20 ft
C601202075Red75 ft
C601209010White10 ft
C601209015White15 ft
C601209020White20 ft
C601209025White25 ft
C601209035White35 ft
C601209050White50 ft
C601209075White75 ft
C601209100White100 ft
C601309010White10 ft
C601309015White15 ft
C601309020White20 ft
C601309025White25 ft
C601309035White35 ft
C601309050White50 ft
C601309075White75 ft
C601309100White100 ft
C601204015Yellow15 ft
C601204020Yellow20 ft
C601204025Yellow25 ft
C601204035Yellow35 ft
C601204050Yellow50 ft
C601204075Yellow75 ft
C601204100Yellow100 ft
C601304015Yellow15 ft
C601304020Yellow20 ft
C601304025Yellow25 ft
C601304035Yellow35 ft
C601304050Yellow50 ft
C601304075Yellow75 ft
C601304100Yellow100 ft

Product Notes

Labeling: Belden Part Number, Performance Acronym, Wiring Scheme and Cord Length.
