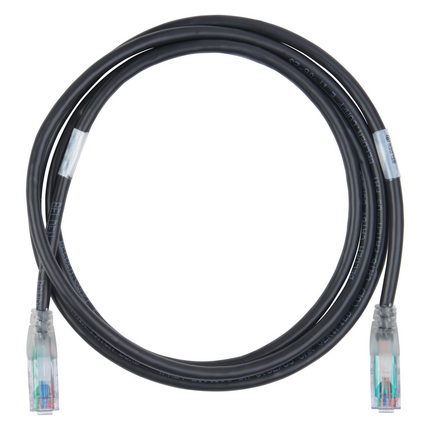

CAT6+ UTP CMP Patch Cords

Data Sheet
Share

Product Overview

Suitable Applications: IBDN System 4800, 3600 and 2400, TIA Category 6, ISO Class E, 1000BASE-T

Physical Characteristics (Overall)

Total Number of Pairs: 4
Overall Nominal Diameter: 0.238 in
Wiring Scheme: T568A/B-T568A/B
Packaging: Individually packaged in a clear plastic bag.

Connectors

Materials
DescriptionMaterialColor
BootElastomerTranslucent
ConductorBC - Bare Copper
Front ConnectionBlades Phosphor Bronze with 50u inch Gold over Nickel Plating
Inner JacketPVC - Polyvinyl Chloride
InsulationPO - Polyolefin
Outer JacketPVC - Polyvinyl Chloride

Electrical Characteristics

Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
Current Rating: 1.500 A
Insulation Resistance: 500 M-Ohm Minimum
Max Contact Resistance: 20 mOhm

Temperature Range

Installation Temp Range: -10°C To +60°C
Storage Temp Range: -40°C To +70°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Min Bend Radius (Overall Cable): 1.040 in
Plug /Jack Compatibility: RJ45
Termination Interface
ConnectionDurabilities
Mated Connection750 Cycles

Standards

UL Rating: Plenum
Data Category: Category 6+
Telecommunications Standards: Category 6 - TIA 568-C.2, Class E - ISO/IEC 11801:2002 Ed.2 Amendment 2
Other Standards: FCC Part 68, Subpart F, IEC 60603-7

Applicable Environmental and Other Programs

Environmental Space: Plenum
EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-01-01
MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing: c(UL)us Listed

Part Number

Related Parts: CAT6+ Modular Jacks and Couplers, CAT6+ Patch Panels
Variants
Item #ColorLength
C602100001Black1 ft
C602100002Black2 ft
C602100003Black3 ft
C602100004Black4 ft
C602100006Black6 ft
C602100008Black8 ft
C602100010Black10 ft
C602100012Black12 ft
C602100025Black25 ft
C602106060Blue60 ft
C602106025Blue25 ft
C602106040Blue40 ft
C602106045Blue45 ft
C602106100Blue100 ft
C602108002Gray2 ft
C602108003Gray3 ft
C602108006Gray6 ft
C602108008Gray8 ft
C602108010Gray10 ft
C602108025Gray25 ft
C602108070Gray70 ft
C602108100Gray100 ft
C602105005Green5 ft
C602105014Green14 ft
C602105016Green16 ft
C602105018Green18 ft
C602105040Green40 ft
C602105050Green50 ft
C602105065Green65 ft
C602105075Green75 ft
C602105100Green100 ft
C602105125Green125 ft
C602105150Green150 ft
C602105175Green175 ft
C602105200Green200 ft
C602103003Orange3 ft
C602103006Orange6 ft
C602103015Orange15 ft
C602103025Orange25 ft
C602107025Purple25 ft
C602102001Red1 ft
C602102002Red2 ft
C602102004Red4 ft
C602102006Red6 ft
C602102008Red8 ft
C602102010Red10 ft
C602102012Red12 ft
C602102025Red25 ft
C602109005White5 ft
C602109002White2 ft
C602109003White3 ft
C602109004White4 ft
C602109010White10 ft
C602109015White15 ft
C602109040White40 ft
C602109066White66 ft
C602109070White70 ft
C602109099White99 ft
C602109100White100 ft
C602109110White110 ft
C602109150White150 ft
C602104007Yellow7 ft
C602104010Yellow10 ft
C602104025Yellow25 ft
C602104065Yellow65 ft
C602104075Yellow75 ft

Product Notes

Labeling: Belden Part Number, Performance Acronym, Wiring Scheme and Cord Length.

History

Update and Revision: Revision Number: 0.160 Revision Date: 01-31-2020
RoHS Documentation
Date: 2006-01-01
