CAT 6 KCON Cpl PP AngFlx 24 1U - AX104568-CAT 6 KeyConnect Coupler Panel AngleFlex 24 Port, UTP


AngleFlex Patch Panel, 24-port, 1U, with CAT6+ RJ45 Coupler

Product Overview

Suitable Applications: IBDN System CAT6+, TIA Category 6

Physical Characteristics (Overall)

Height: 1.75 in
Width: 19.000 in
Depth: 3.100 in
Port Count: 24 Port
Front Connection: Angled
Packaging: Individually packaged in a cardboard box.
Weight: 3.820 lbs

Connectors

Materials
DescriptionMaterial
PanelSteel

Construction and Dimensions

Max Capacity: 24 connectors

Temperature Range

Installation Temperature Range: -10°C To +60°C
Storage Temperature Range: -40°C To +70°C
Operating Temperature Range: -10°C To +60°C

Mechanical Characteristics

Footprint/Type: KeyConnect

Standards

Data Category: Category 6

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU Directive 2011/65/EU (RoHS 2): Yes
MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing: Bi-national Standard Listed

Related Part Numbers

Related Parts: Compatible with CAT6+ Patch Cord and CAT6+ Pre-Terminated Cable Assemblies
Variants
Item #ColorUPC
AX104568Black611589006774

Product Notes

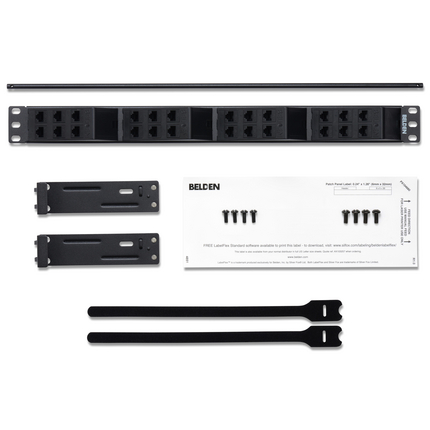

Included Parts: 4 Screws (10x32); 4 Screws (12x24); 1 Printable LabelFlex Half-Sheet; 2 Velcro Straps; 2 Rear Cable Management Bracket, 1 Installation Guide
Notes: For proper installation refer to Installation Guide PX104673 included with the product. Refer to AX104215 for the Specifications of the Couplers.

History

Update and Revision: Revision Number: 0.60 Revision Date: 11-19-2024
