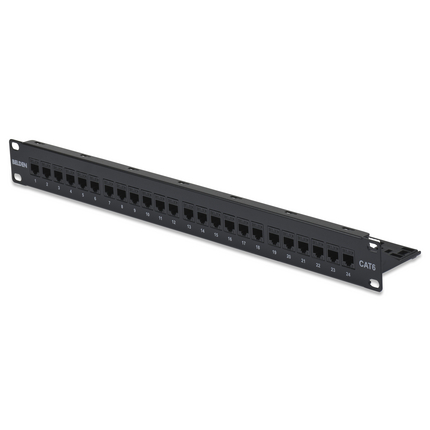

(109)CAT6 DataConnect Patch Panel, UTP, Flat, 24-Port, 1U (Preloaded)
| Suitable Applications: | Ethernet 10/ 100/ 1000BASE-T, 2.5G/ 5GBASE-T |
| Height: | 1.75 in |
| Width: | 19.000 in |
| Depth: | 2.960 in |
| Port Count: | 24 Port |
| Front Connection: | Flush |
| Packaging: | Individually packaged in a cardboard box. |
| Weight: | 2.008 lbs |
| Description | Material | Color |
|---|---|---|
| Panel | Steel | Black |
| Management Bar | Steel/Plastic | Black |
| Max Capacity: | 24 connectors (preloaded) |
| Dielectric Strength: | 1,000 V RMS @ 60 Hz for 1 minute |
| Current Rating: | 1.500 A |
| Insulation Resistance: | 500 M-Ohm Minimum |
| Termination Resistance: | 2.5 mOhm |
| Installation Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Operating Temperature Range: | -10°C To +60°C |
| Footprint/Type: | DataConnect |
| Tool Compatibility: | Belden 110 Connecting Tool (AX100749), MediaFlex Termination Station (AX101852), Belden Rapid TerminationTool (AX105566) |
| Plug /Jack Compatibility: | RJ45 |
| Cable/Connector Retention: | 11.25 lbs |
| Connector/Hardware Retention: | 20 lbs |
| Plug/Connector Retention: | 11.250 lbs |
| UL Rating: | UL94V-0 |
| ISO/IEC Compliance: | IEC 60603-7 |
| Data Category: | Category 6 |
| TIA/EIA Compliance: | ANSI/TIA 1096-A (formerly FCC Part 68-F) |
| IEEE Compliance: | IEEE 802.3at type 1 and 2 (PoE) up to 30W, IEEE 802.3bt type 3 and 4 (PoE) up to 100W, CISCO (UPOE) up to 60W, Power over HDBaseTTM (POH) up to 100W |
| Other Standards: | ANSI/TIA 1096-A (formerly FCC Part 68-F) |
| Environmental Space: | Indoor |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Safety Listing: | c(UL)us Listed, UL 1863, UL File E77103 |
| Related Parts: | DataConnect CAT5 Modular Jacks, DataConnect CAT5 Modular cord |
| Item # | Color | Put-Up Type | UPC |
|---|---|---|---|
| DC6PPF1U24BK | Black | 1U | 611589249218 |
| Included Parts: | 4 Screws (12x24); 1 Printable Label Half-Sheet; 2 Velcro Straps; 1 Rear Cable Support Bar, 1 Installation Guide, 24 Protective Caps |
| Notes: | For proper installation refer to Installation Guide PX106898 included with the product |
| Update and Revision: | Revision Number: 0.37 Revision Date: 06-01-2023 |
