CAT 6 Angled PP 48 2U - CAT 6 Angled Patch Panel, 48 Port, 2U


Angled Patch Panel, 48-port, 2U, with CAT6+ RJ45 Modular Jack

Product Overview

Environmental Space: Indoor
Suitable Applications: IBDN System CAT6+, TIA Category 6+

Physical Characteristics (Overall)

Height: 3.5 in
Width: 19.000 in
Depth: 11.540 in
Port Count: 48 Port
Front Connection: Angled
Packaging: Individually packaged in a cardboard box.
Weight: 3.800 lbs

Connectors

Materials
DescriptionMaterial
PanelSteel

Construction and Dimensions

Max Capacity: 48 connectors

Temperature Range

Installation Temp Range: -10°C To +60°C
Storage Temp Range: -40°C To +70°C
Operating Temp Range: -10°C To +60°C

Standards

Data Category: Category 6

Applicable Environmental and Other Programs

EU Directive 2011/65/EU (ROHS II): Yes
MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing: Bi-national Standard Listed

Part Number

Related Parts: Compatible with CAT6+ Patch Cord and CAT6+ Pre-Terminated Cable Assemblies
Variants
Item #ColorUPC
AX105361Black611589007481

Product Notes

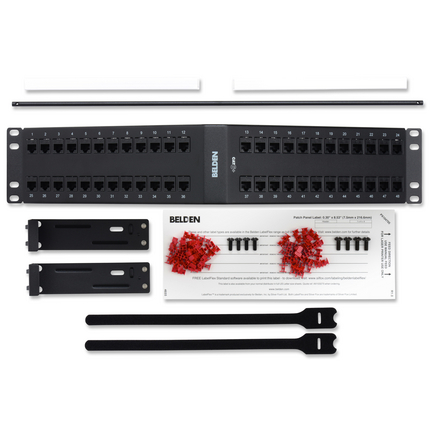

Included Parts: 4 Screws (10x32); 4 Screws (12x24); 1 Printable LabelFlex Half-Sheet; 2 Label Holders; 2 Velcro Straps; 2 Rear Cable Management Bracket; 1 Bar.
Notes: Refer to AX102283 for the Specifications of the Modular Jacks.

History

Update and Revision: Revision Number: 0.42 Revision Date: 07-11-2019
