CAT5E UTP CMR PIGTAILS - CAT5E UTP CMR Pigtails

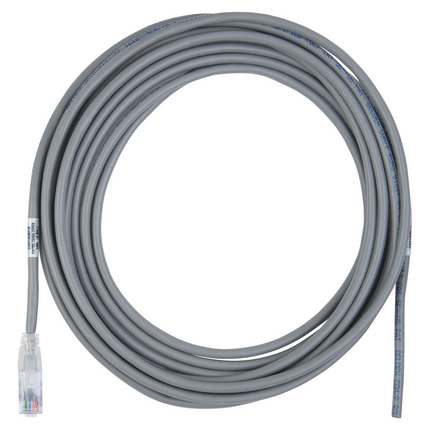

CAT5E UTP CMR Pigtails

Product Overview

Suitable Applications: IBDN System 1200, TIA Category 5E, ISO Class D, 1000BASE-T, 100BASE-T

Physical Characteristics (Overall)

Total Number of Pairs: 4
Overall Nominal Diameter: 0.21 in
Packaging: Individually packaged in a clear plastic bag.

Connectors

Materials
DescriptionMaterialColor
BootElastomerTranslucent
ConductorBC - Bare Copper
Front ConnectionBlades Phosphor Bronze with 50u inch Gold over Nickel Plating
Inner JacketPVC - Polyvinyl Chloride
InsulationPO - Polyolefin
Outer JacketPVC - Polyvinyl Chloride

Electrical Characteristics

Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
Current Rating: 1.500 A
Insulation Resistance: 500 M-Ohm Minimum
Max Contact Resistance: 20 mOhm

Temperature Range

Installation Temp Range: -10°C To +60°C
Storage Temp Range: -40°C To +70°C
Operating Temp Range: -10°C To +60°C

Mechanical Characteristics

Min Bend Radius (Overall Cable): 1.040 in
Plug /Jack Compatibility: RJ45
Termination Interface
ConnectionDurabilities
Mated Connection750 Cycles

Standards

UL Rating: Riser
Data Category: Category 5e
TIA/EIA Compliance: Category 5E - TIA 568-C.2, Class D - ISO/IEC 11801:2002 Ed.2 Amendment 2
Other Compliance: FCC Part 68, Subpart F, IEC 60603-7

Applicable Environmental and Other Programs

Environmental Space: Riser
EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-01-01
MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing: c(UL)us Listed

Part Number

Related Parts: CAT5E Modular Jacks and Couplers, CAT5E Patch Panels, GigaBIX Connectors
Variants
Item #ColorLength
C531200025Black25 ft
C531206015Blue15 ft
C531206020Blue20 ft
C531206025Blue25 ft
C531206035Blue35 ft
C531206050Blue50 ft
C531206075Blue75 ft
C531206100Blue100 ft
C531306015Blue15 ft
C531306020Blue20 ft
C531306025Blue25 ft
C531306035Blue35 ft
C531306050Blue50 ft
C531306075Blue75 ft
C531306100Blue100 ft
C531208002Gray2 ft
C531208006Gray6 ft
C531208007Gray7 ft
C531208010Gray10 ft
C531208020Gray20 ft
C531208035Gray35 ft
C531208045Gray45 ft
C531208050Gray50 ft
C531208055Gray55 ft
C531208060Gray60 ft
C531208075Gray75 ft
C531208080Gray80 ft
C531208085Gray85 ft
C531208090Gray90 ft
C531208100Gray100 ft
C531208110Gray110 ft
C531208140Gray140 ft
C531308015Gray15 ft
C531308020Gray20 ft
C531308025Gray25 ft
C531308030Gray30 ft
C531308035Gray35 ft
C531308050Gray50 ft
C531308055Gray55 ft
C531308075Gray75 ft
C531308100Gray100 ft
C531205025Green25 ft
C531205050Green50 ft
C531202025Red25 ft
C531202050Red50 ft
C531302025Red25 ft
C531209015White15 ft
C531209020White20 ft
C531209025White25 ft
C531209035White35 ft
C531209050White50 ft
C531209075White75 ft
C531209100White100 ft
C531309015White15 ft
C531309020White20 ft
C531309025White25 ft
C531309035White35 ft
C531309050White50 ft
C531309075White75 ft
C531309100White100 ft
C531204025Yellow25 ft
C531204035Yellow35 ft
C531204050Yellow50 ft

Product Notes

Labeling: Belden Part Number, Performance Acronym, Wiring Scheme and Cord Length.

History

Update and Revision: Revision Number: 0.71 Revision Date: 01-31-2020
Date: 2006-01-01
