CAT5E UTP CMR BONDED PIGTAILS - CAT5E UTP CMR Bonded Pigtails

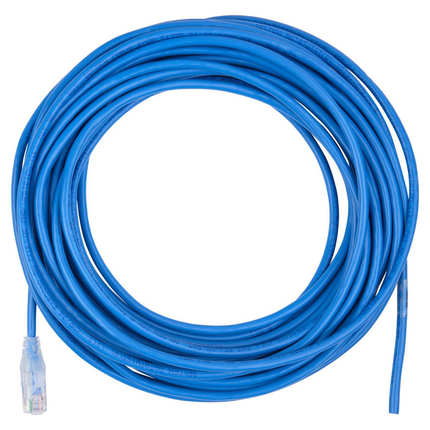

CAT5E UTP CMR Bonded Pigtails

Product Overview

Suitable Applications: IBDN System 1200, TIA Category 5E, ISO Class D, 1000BASE-T, 100BASE-T

Physical Characteristics (Overall)

Total Number of Pairs: 4
Overall Nominal Diameter: 0.21 in
Packaging: Individually packaged in a clear plastic bag.

Connectors

Materials
DescriptionMaterialColor
BootElastomerTranslucent
ConductorBC - Bare Copper
Front ConnectionBlades Phosphor Bronze with 50u inch Gold over Nickel Plating
Inner JacketPVC - Polyvinyl Chloride
InsulationPO - Polyolefin
Outer JacketPVC - Polyvinyl Chloride

Electrical Characteristics

Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
Current Rating: 1.500 A
Insulation Resistance: 500 M-Ohm Minimum
Max Contact Resistance: 20 mOhm

Temperature Range

Installation Temp Range: -10°C To +60°C
Storage Temp Range: -40°C To +70°C
Operating Temp Range: -10°C To +60°C

Mechanical Characteristics

Min Bend Radius (Overall Cable): 1.040 in
Plug /Jack Compatibility: RJ45
Termination Interface
ConnectionDurabilities
Mated Connection750 Cycles

Standards

UL Rating: Riser
Data Category: Category 5e
TIA/EIA Compliance: Category 5E - TIA 568-C.2, Class D - ISO/IEC 11801:2002 Ed.2 Amendment 2
Other Compliance: FCC Part 68, Subpart F, IEC 60603-7

Applicable Environmental and Other Programs

Environmental Space: Riser
EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-01-01
MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing: ACA, c(UL)us Listed

Part Number

Related Parts: CAT5E Modular Jacks and Couplers, CAT5E Patch Panels, GigaBIX Connectors
Variants
Item #ColorLength
C501200015Black15 ft
C501200020Black20 ft
C501200025Black25 ft
C501200035Black35 ft
C501200050Black50 ft
C501200075Black75 ft
C501200100Black100 ft
C501300015Black15 ft
C501300020Black20 ft
C501300025Black25 ft
C501300035Black35 ft
C501300050Black50 ft
C501300075Black75 ft
C501300100Black100 ft
C501206015Blue15 ft
C501206020Blue20 ft
C501206025Blue25 ft
C501206035Blue35 ft
C501206050Blue50 ft
C501206075Blue75 ft
C501206100Blue100 ft
C501306015Blue15 ft
C501306020Blue20 ft
C501306025Blue25 ft
C501306030Blue30 ft
C501306035Blue35 ft
C501306050Blue50 ft
C501306075Blue75 ft
C501306100Blue100 ft
C501208010Gray10 ft
C501208015Gray15 ft
C501208020Gray20 ft
C501208025Gray25 ft
C501208035Gray35 ft
C501208050Gray50 ft
C501208055Gray55 ft
C501208060Gray60 ft
C501208075Gray75 ft
C501208080Gray80 ft
C501208085Gray85 ft
C501208100Gray100 ft
C501308015Gray15 ft
C501308020Gray20 ft
C501308025Gray25 ft
C501308030Gray30 ft
C501308035Gray35 ft
C501308050Gray50 ft
C501308055Gray55 ft
C501308060Gray60 ft
C501308075Gray75 ft
C501308100Gray100 ft
C501205015Green15 ft
C501205020Green20 ft
C501205025Green25 ft
C501205035Green35 ft
C501205050Green50 ft
C501205075Green75 ft
C501205100Green100 ft
C501305015Green15 ft
C501305020Green20 ft
C501305025Green25 ft
C501305030Green30 ft
C501305035Green35 ft
C501305050Green50 ft
C501305075Green75 ft
C501305100Green100 ft
C501203090Orange90 ft
C501202090Red90 ft
C501209015White15 ft
C501209020White20 ft
C501209025White25 ft
C501209035White35 ft
C501209050White50 ft
C501209075White75 ft
C501209100White100 ft
C501309010White10 ft
C501309015White15 ft
C501309020White20 ft
C501309025White25 ft
C501309035White35 ft
C501309050White50 ft
C501309075White75 ft
C501309100White100 ft
C501204015Yellow15 ft
C501204020Yellow20 ft
C501204025Yellow25 ft
C501204035Yellow35 ft
C501204050Yellow50 ft
C501204075Yellow75 ft
C501204100Yellow100 ft
C501304015Yellow15 ft
C501304020Yellow20 ft
C501304025Yellow25 ft
C501304035Yellow35 ft
C501304050Yellow50 ft
C501304075Yellow75 ft
C501304100Yellow100 ft

Product Notes

Labeling: Belden Part Number, Performance Acronym, Wiring Scheme and Cord Length.
