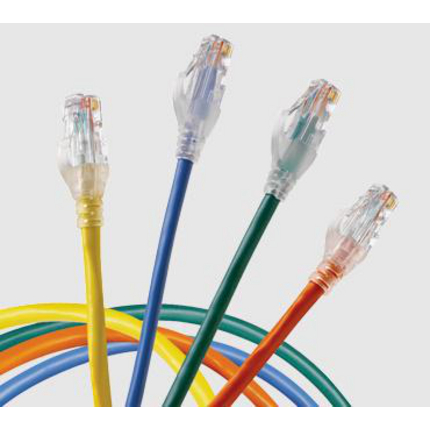

CAT5E UTP CMP PIGTAILS - CAT5E UTP CMP Pigtails


CAT5E UTP CMP Pigtails

Product Overview

Environmental Space: Plenum
Suitable Applications: IBDN System 1200, TIA Category 5E, ISO Class D, 1000BASE-T, 100BASE-T

Physical Characteristics (Overall)

Total Number of Pairs: 4
Overall Nominal Diameter: 0.21 in
Packaging: Individually packaged in a clear plastic bag.

Connectors

Materials
DescriptionMaterialColor
BootElastomerTranslucent
ConductorBC - Bare Copper
Front ConnectionBlades Phosphor Bronze with 50u inch Gold over Nickel Plating
Inner JacketPVC - Polyvinyl Chloride
InsulationPO - Polyolefin
Outer JacketPVC - Polyvinyl Chloride

Electrical Characteristics

Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
Current Rating: 1.500 A
Insulation Resistance: 500 M-Ohm Minimum
Max Contact Resistance: 20 mOhm

Temperature Range

Installation Temp Range: -10°C To +60°C
Storage Temp Range: -40°C To +70°C
Operating Temp Range: -10°C To +60°C

Mechanical Characteristics

Min Bend Radius (Overall Cable): 1.040 in
Plug /Jack Compatibility: RJ45
Termination Interface
ConnectionDurabilities
Mated Connection750 Cycles

Standards

UL Rating: Riser
Data Category: Category 5e
Telecommunications Standards: Category 5E - TIA 568-C.2, Class D - ISO/IEC 11801:2002 Ed.2 Amendment 2
Other Standards: FCC Part 68, Subpart F, IEC 60603-7

Applicable Environmental and Other Programs

EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-01-01
MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing: c(UL)us Listed

Part Number

Related Parts: CAT5E Modular Jacks and Couplers, CAT5E Patch Panels, GigaBIX Connectors
Variants
Item #ColorLength
C532206015Blue15 ft
C532206020Blue20 ft
C532206025Blue25 ft
C532206035Blue35 ft
C532206050Blue50 ft
C532206075Blue75 ft
C532206100Blue100 ft
C532306015Blue15 ft
C532306020Blue20 ft
C532306025Blue25 ft
C532306035Blue35 ft
C532306050Blue50 ft
C532306075Blue75 ft
C532306100Blue100 ft
C532208015Gray15 ft
C532208020Gray20 ft
C532208025Gray25 ft
C532208035Gray35 ft
C532208050Gray50 ft
C532208075Gray75 ft
C532208100Gray100 ft
C532308015Gray15 ft
C532308020Gray20 ft
C532308025Gray25 ft
C532308035Gray35 ft
C532308050Gray50 ft
C532308075Gray75 ft
C532308100Gray100 ft
C532209015White15 ft
C532209020White20 ft
C532209025White25 ft
C532209030White30 ft
C532209035White35 ft
C532209050White50 ft
C532209075White75 ft
C532209100White100 ft
C532309015White15 ft
C532309020White20 ft
C532309025White25 ft
C532309035White35 ft
C532309050White50 ft
C532309075White75 ft
C532309100White100 ft

Product Notes

Labeling: Belden Part Number, Performance Acronym, Wiring Scheme and Cord Length.

History

Update and Revision: Revision Number: 0.58 Revision Date: 08-06-2018
Date: 2006-01-01
