CAT5E UTP CMP PATCH CORDS - CAT5E UTP CMP Patch Cords

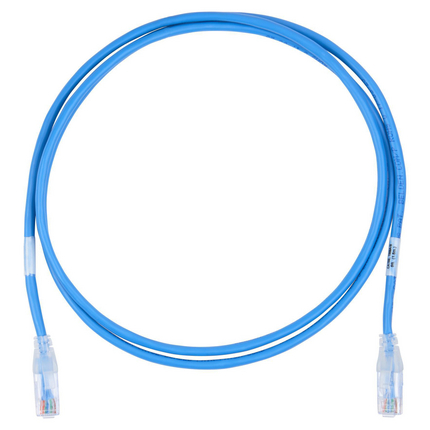

CAT5E UTP CMP Patch Cords

Product Overview

Suitable Applications: IBDN System 1200, TIA Category 5E, ISO Class D, 1000BASE-T, 100BASE-T

Physical Characteristics (Overall)

Total Number of Pairs: 4
Overall Nominal Diameter: 0.22 in
Wiring Scheme: T568A/B-T568A/B
Packaging: Individually packaged in a clear plastic bag.

Connectors

Materials
DescriptionMaterialColor
BootElastomerTranslucent
ConductorBC - Bare Copper
Front ConnectionBlades Phosphor Bronze with 50u inch Gold over Nickel Plating
Inner JacketPVC - Polyvinyl Chloride
InsulationPO - Polyolefin
Outer JacketPVC - Polyvinyl Chloride

Electrical Characteristics

Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
Current Rating: 1.500 A
Insulation Resistance: 500 M-Ohm Minimum
Max Contact Resistance: 20 mOhm

Temperature Range

Installation Temp Range: -10°C To +60°C
Storage Temp Range: -40°C To +70°C
Operating Temp Range: -10°C To +60°C

Mechanical Characteristics

Min Bend Radius (Overall Cable): 1.040 in
Plug /Jack Compatibility: RJ45
Termination Interface
ConnectionDurabilities
Mated Connection750 Cycles

Standards

UL Rating: Riser
Data Category: Category 5e
Telecommunications Standards: Category 5E - TIA 568-C.2, Class D - ISO/IEC 11801:2002 Ed.2 Amendment 2
Other Standards: FCC Part 68, Subpart F, IEC 60603-7

Applicable Environmental and Other Programs

Environmental Space: Plenum
EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-01-01
MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing: c(UL)us Listed

Part Number

Related Parts: CAT5E Modular Jacks and Couplers, CAT5E Patch Panels
Variants
Item #ColorLength
C502100030Black30 ft
C502100033Black33 ft
C502100036Black36 ft
C502100040Black40 ft
C502100043Black43 ft
C502100046Black46 ft
C502100049Black49 ft
C502100052Black52 ft
C502100056Black56 ft
C502100059Black59 ft
C502100062Black62 ft
C502100066Black66 ft
C502100069Black69 ft
C502100072Black72 ft
C502100079Black79 ft
C502100082Black82 ft
C502100085Black85 ft
C502100092Black92 ft
C502100102Black102 ft
C502106002Blue2 ft
C502106004Blue4 ft
C502106005Blue5 ft
C502106006Blue6 ft
C502106007Blue7 ft
C502106010Blue10 ft
C502106012Blue12 ft
C502106015Blue15 ft
C502106020Blue20 ft
C502106025Blue25 ft
C502106030Blue30 ft
C502106050Blue50 ft
C502106075Blue75 ft
C502106080Blue80 ft
C502106090Blue90 ft
C502108004Gray4 ft
C502108005Gray5 ft
C502108007Gray7 ft
C502108010Gray10 ft
C502108025Gray25 ft
C502108035Gray35 ft
C502108050Gray50 ft
C502108066Gray66 ft
C502105050Green50 ft
C502105070Green70 ft
C502105075Green75 ft
C502105080Green80 ft
C502105100Green100 ft
C502105150Green150 ft
C502103010Orange10 ft
C502103015Orange15 ft
C502103020Orange20 ft
C502107025Purple25 ft
C502116025TIA Blue25 ft
C502116050TIA Blue50 ft
C502109003White3 ft
C502109004White4 ft
C502109007White7 ft
C502109010White10 ft
C502109012White12 ft
C502109015White15 ft
C502109020White20 ft
C502109025White25 ft
C502109050White50 ft
C502104035Yellow35 ft

Product Notes

Labeling: Belden Part Number, Performance Acronym, Wiring Scheme and Cord Length.

History

Update and Revision: Revision Number: 0.153 Revision Date: 01-31-2020
Date: 2006-01-01
