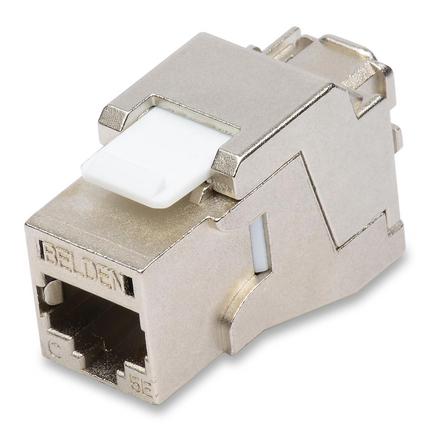

(4)CAT 5e Shielded KeyConnect Modular Jack, Category 5e, RJ45
| Suitable Applications: | IBDN Shielded System 1200, TIA Screened Category 5e , ISO Class D, 1000BASE-T |
| Overall Height: | 1.000 in |
| Overall Width: | 0.675 in |
| Overall Depth: | 1.570 in |
| Wiring Scheme: | T568A/B |
| Packaging: | Individually packaged in a plastic bag; Standard pack of 70 units |
| Weight: | 0.048 lbs. |
| Description | Material | Type |
|---|---|---|
| Front Connection | Phosphor Bronze with 50u inch Gold over Nickel Plating | RJ45 |
| Rear Connection | Phosphor Bronze with Tin Plating over Nickel | IDC |
| Connector Body | Metal |
| Dielectric Strength: | 1,000V RMS @ 60 Hz for 1 minute |
| Insulation Resistance: | 500 M-Ohm Minimum |
| Max Contact Resistance: | 20 mOhm |
| Termination Resistance: | 2.5 mOhm |
| Installation Temperature Range: | -10°C to +60°C |
| Storage Temperature Range: | -40°C to +70°C |
| Operating Temperature Range: | -10°C to +60°C |
| Connector System Compatibility: | KeyConnect |
| Tool Compatibility: | Tool Less |
| Plug /Jack Compatibility: | RJ45, RJ11 |
| Termination Front Connection: | Mated Connection |
| Termination Front Connection Durability: | 750 cycles |
| Termination Rear Connection: | IDC Connection |
| Termination Rear Connection Durability: | 20 terminations |
| Cable/Connector Retention: | 15 lbs |
| Connector/Hardware Retention: | 20 lbs |
| Plug/Connector Retention: | 11.250 lbs |
| Data Category: | Category 5e |
| TIA/EIA Compliance: | Category 5e - ANSI/TIA 568.2-E, ISO/IEC 11801-1:2017 |
| Other Standards: | FCC Part 68, Subpart F, IEC 60603-7 |
| Third Party Performance Verification: | ETL - Verified Category 5e |
| Environmental Space: | Indoor |
| EU Directive 2002/95/EC (RoHS): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Safety Listing: | Bi-national Standard Listed |
| Related Parts: | Compatible with Shielded KeyConnect Patch Panels 24-p , 48-p, See notes if using with Belden faceplates. |
| Included Parts: | 1 Termination Bar, 1 cable Tie |
| Notes: | IDC Wire Gauge: Solid 22~24 AWG. Max cable OD 8.55mm (0.336 in.) May not be compatible with all Belden faceplates. Please contact Belden Technical Support for compatibility verification. |
| Update and Revision: | Revision Number: 0.2 Revision Date: 10-28-2026 |
