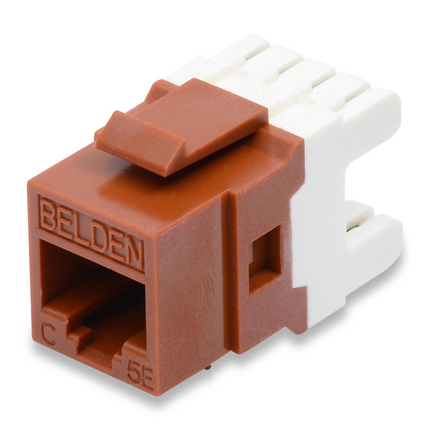

(109)CAT5E KeyConnect Jacks are available in several colors.
| Suitable Applications: | IBDN System 1200, TIA Category 5E, ISO Class D, 1000 BASE-T |
| Height: | 0.88 in |
| Width: | 0.64 in |
| Depth: | 1.29 in |
| Wiring Scheme: | T568A/B |
| Packaging: | Individually packaged in a plastic bag. Standard pack of 50 units. |
| Weight: | 0.014 lbs |
| Description | Material | Type |
|---|---|---|
| Front Connection | Copper Alloy with 50 µ inch Gold over Nickel | Lead Frame |
| Rear Connection | Copper Alloy with Nickel Plating | IDC |
| Connector Body | Plastic - UL940V-0 |
| Dielectric Strength: | 1,000V RMS @ 60 Hz for 1 minute |
| Current Rating: | 1.500 A |
| Insulation Resistance: | 500 M-Ohm Minimum |
| Max Contact Resistance: | 20 mOhm |
| Termination Resistance: | 2.5 mOhm |
| Installation Temperature Range: | -10°C to +60°C |
| Storage Temperature Range: | -40°C to +70°C |
| Operating Temperature Range: | -10°C to +60°C |
| Footprint/Type: | KeyConnect |
| Tool Compatibility: | Belden 110 Connecting Tool, MediaFlex Termination Station |
| Plug /Jack Compatibility: | RJ45, RJ11 |
| Termination Front Connection: | Mated Connection |
| Termination Front Connection Durability: | 1,000 cycles |
| Termination Rear Connection: | Gas Tight IDC Connection |
| Termination Rear Connection Durability: | 20 terminations |
| Connector/Hardware Retention: | 20 lbs |
| Plug/Connector Retention: | 11.250 lbs |
| Data Category: | Category 5e |
| TIA/EIA Compliance: | Category 5 - ISO/IEC 11801:2002 Ed.2 |
| Other Standards: | FCC Part 68, Subpart F, IEC 60603-7 |
| Third Party Performance Verification: | ETL - Verified Category 5e |
| Environmental Space: | Indoor |
| EU Directive 2002/95/EC (RoHS): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Safety Listing: | ACA, c(UL)us Listed |
| Related Parts: | Compatible with KeyConnect Faceplates, Adapters, Boxes and Patch Panels |
| Item # | Color | Packaging | Wiring Scheme |
|---|---|---|---|
| AX101308 | Almond | Single Pack | T568A/B |
| AX101308-B24 | Almond | Bulk Pack (24) | T568A/B |
| AX101310 | Black | Single Pack | T568A/B |
| AX101310-B24 | Black | Bulk Pack (24) | T568A/B |
| AX104186 | Blue | Single Pack | T568A/B |
| AX104186-B24 | Blue | Bulk Pack (24) | T568A/B |
| AX104188 | Brown | Single Pack | T568A/B |
| AX104188-B24 | Brown | Bulk Pack (24) | T568A/B |
| AX101309 | Electric White | Single Pack | T568A/B |
| AX101309-B24 | Electric White | Bulk Pack (24) | T568A/B |
| AX101307 | Gray | Single Pack | T568A/B |
| AX101307-B24 | Gray | Bulk Pack (24) | T568A/B |
| AX104185 | Green | Single Pack | T568A/B |
| AX104185-B24 | Green | Bulk Pack (24) | T568A/B |
| AX103079 | Ivory | Single Pack | T568A/B |
| AX103079-B24 | Ivory | Bulk Pack (24) | T568A/B |
| AX104182 | Orange | Single Pack | T568A/B |
| AX104182-B24 | Orange | Bulk Pack (24) | T568A/B |
| AX104187 | Purple | Single Pack | T568A/B |
| AX104187-B24 | Purple | Bulk Pack (24) | T568A/B |
| AX104183 | Red | Single Pack | T568A/B |
| AX104183-B24 | Red | Bulk Pack (24) | T568A/B |
| AX101315 | TIA Blue | Single Pack | T568A/B |
| AX101317 | TIA Brown | Single Pack | T568A/B |
| AX101314 | TIA Green | Single Pack | T568A/B |
| AX101311 | TIA Orange | Single Pack | T568A/B |
| AX101316 | TIA Purple | Single Pack | T568A/B |
| AX101312 | TIA Red | Single Pack | T568A/B |
| AX101313 | TIA Yellow | Single Pack | T568A/B |
| AX104184 | Yellow | Single Pack | T568A/B |
| AX104184-B24 | Yellow | Bulk Pack (24) | T568A/B |
| Included Parts: | 1 T-Bar |
| Notes: | Please see Installation Guide PX103329 |
| Update and Revision: | Revision Number: 0.285 Revision Date: 04-08-2022 |
