CAT 5E HD-110 PP 48 2U - CAT 5E HD-110 Patch Panel, 48 Port, 2U

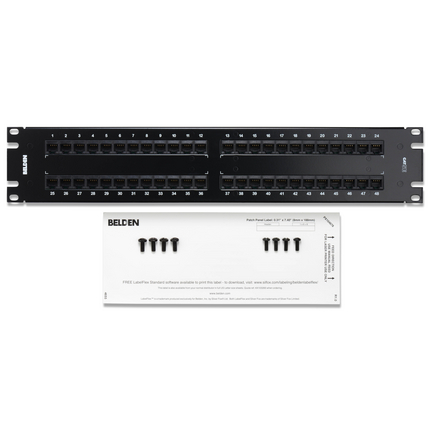

CAT5E HD-110 Patch Panel, 48-port, 2U

Product Overview

Suitable Applications: IBDN System 1200, TIA Category 5e, ISO Class D, 1000BASE-T, 100BASE-T

Physical Characteristics (Overall)

Height: 3.440 in
Width: 19.000 in
Depth: 1.35 in
Port Count: 48 Port
Front Connection: Flush
Packaging: Individually packaged in a cardboard box.
Weight: 1.700 lbs



Construction and Dimensions

Max Capacity: 48 connectors (preloaded)

Electrical Characteristics

Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
Current Rating: 1.500 A
Insulation Resistance: 500 M-Ohm Minimum
Termination Resistance: 2.5 mOhm

Temperature Range

Installation Temp Range: -10°C To +60°C
Storage Temp Range: -40°C To +70°C
Operating Temp Range: -10°C To +60°C

Mechanical Characteristics

Footprint/Type: HDPP
Tool Compatibility: Gigaflex Connecting Tool (AX100749)
Plug /Jack Compatibility: RJ45
Termination Type: Universal T568A/B


Data Category: Category 5e
TIA/EIA Compliance: Category 5 - ISO/IEC 11801:2002 Ed.2
Other Compliance: FCC Part 68, Subpart F, IEC 60603-7

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU Directive 2011/65/EU (ROHS II): Yes
MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing: ACA, Bi-national Standard Listed

Part Number

Related Parts: CAT5E Modular Cords
Item #ColorUPC

Product Notes

Included Parts: 4 Screws (10x32); 4 Screws (12x24); 1 Printable LabelFlex Half-Sheet; 1 Installation Guide.
Notes: For proper installation refer to Installation Guide PX100733 included with the product


Update and Revision: Revision Number: 0.50 Revision Date: 01-31-2020
No accessories are available for this product
