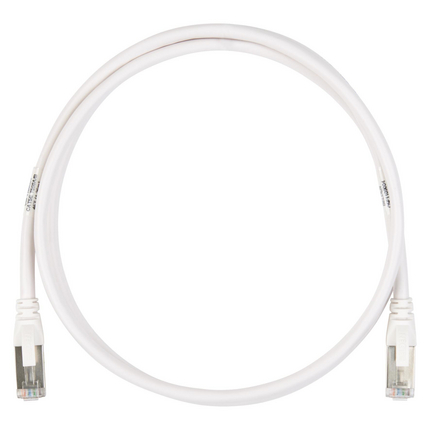

CAT5E F/UTP CMR PATCH CORDS - CAT5E F/UTP CMR Patch Cords


CAT5E F/UTP CMR Patch Cords

Product Overview

Suitable Applications: IBDN Shielded System Cat 5e, TIA Category 5e, ISO Class D, 1000BASE-T

Physical Characteristics (Overall)

Total Number of Pairs: 4
Overall Nominal Diameter: 0.275 in
Wiring Scheme: T568A/B-T568A/B
Packaging: Individually packaged in a clear plastic bag.

Connectors

Materials
DescriptionMaterialColor
BootElastomerSame as cable
ConductorBC - Bare Copper
Front ConnectionBlades Phosphor Bronze with 50u inch Gold over Nickel Plating
Inner JacketPVC - Polyvinyl Chloride
InsulationPO - Polyolefin
Outer JacketPVC - Polyvinyl Chloride

Electrical Characteristics

Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
Current Rating: 1.500 A
Insulation Resistance: 500 M-Ohm Minimum
Max Contact Resistance: 20 mOhm

Temperature Range

Installation Temp Range: -10°C To +60°C
Storage Temp Range: -40°C To +70°C
Operating Temp Range: -10°C To +60°C

Mechanical Characteristics

Min Bend Radius (Overall Cable): 2.200 in
Plug /Jack Compatibility: RJ45
Termination Interface
ConnectionDurabilities
Mated Connection750 Cycles

Standards

UL Rating: Riser
Data Category: Category 5e
TIA/EIA Compliance: Category 5E - TIA 568-C.2, Class D - ISO/IEC 11801:2002 Ed.2 Amendment 2
Other Compliance: FCC Part 68, Subpart F, IEC 60603-7

Applicable Environmental and Other Programs

Environmental Space: Riser
EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-01-01
MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing: c(UL)us Listed

Part Number

Related Parts: CAT5E Shielded KeyConnect Modular Jacks and Couplers, Shielded Patch Panels
Variants
Item #ColorLength
C5F1100002Black2 ft
C5F1100003Black3 ft
C5F1100004Black4 ft
C5F1100005Black5 ft
C5F1100006Black6 ft
C5F1100007Black7 ft
C5F1100008Black8 ft
C5F1100009Black9 ft
C5F1100010Black10 ft
C5F1100011Black11 ft
C5F1100012Black12 ft
C5F1100013Black13 ft
C5F1100014Black14 ft
C5F1100015Black15 ft
C5F1100020Black20 ft
C5F1100025Black25 ft
C5F1100040Black40 ft
C5F1100050Black50 ft
C5F1106001Blue1 ft
C5F1106002Blue2 ft
C5F1106003Blue3 ft
C5F1106004Blue4 ft
C5F1106005Blue5 ft
C5F1106006Blue6 ft
C5F1106007Blue7 ft
C5F1106008Blue8 ft
C5F1106009Blue9 ft
C5F1106010Blue10 ft
C5F1106011Blue11 ft
C5F1106012Blue12 ft
C5F1106013Blue13 ft
C5F1106014Blue14 ft
C5F1106015Blue15 ft
C5F1106016Blue16 ft
C5F1106018Blue18 ft
C5F1106020Blue20 ft
C5F1106022Blue22 ft
C5F1106024Blue24 ft
C5F1106025Blue25 ft
C5F1106026Blue26 ft
C5F1106027Blue27 ft
C5F1106028Blue28 ft
C5F1106030Blue30 ft
C5F1106040Blue40 ft
C5F1106050Blue50 ft
C5F1106066Blue66 ft
C5F1106082Blue82 ft
C5F1108001Gray1 ft
C5F1108002Gray2 ft
C5F1108003Gray3 ft
C5F1108004Gray4 ft
C5F1108005Gray5 ft
C5F1108006Gray6 ft
C5F1108007Gray7 ft
C5F1108008Gray8 ft
C5F1108009Gray9 ft
C5F1108010Gray10 ft
C5F1108011Gray11 ft
C5F1108012Gray12 ft
C5F1108013Gray13 ft
C5F1108014Gray14 ft
C5F1108015Gray15 ft
C5F1108020Gray20 ft
C5F1108025Gray25 ft
C5F1108050Gray50 ft
C5F1108095Gray95 ft
C5F1102003Red3 ft
C5F1102004Red4 ft
C5F1102005Red5 ft
C5F1102007Red7 ft
C5F1102010Red10 ft
C5F1102015Red15 ft
C5F1102025Red25 ft
C5F1109001White1 ft
C5F1109002White2 ft
C5F1109003White3 ft
C5F1109004White4 ft
C5F1109005White5 ft
C5F1109006White6 ft
C5F1109007White7 ft
C5F1109008White8 ft
C5F1109009White9 ft
C5F1109010White10 ft
C5F1109011White11 ft
C5F1109012White12 ft
C5F1109013White13 ft
C5F1109014White14 ft
C5F1109015White15 ft
C5F1109025White25 ft
C5F1109050White50 ft

Product Notes

Labeling: Belden Part Number, Performance Acronym, Wiring Scheme and Cord Length.

History

Update and Revision: Revision Number: 0.154 Revision Date: 01-31-2020
Date: 2006-01-01
