CAT 5E Angled PP 24 1U - CAT 5E Angled Patch Panel, 24 Port, 1U


Angled Patch Panel, 24-port, 1U with CAT5E RJ45 Modular Jack

Product Overview

Environmental Space: Indoor
Suitable Applications: IBDN System CAT5E, TIA Category 5E

Physical Characteristics (Overall)

Height: 1.75 in
Width: 19.000 in
Depth: 10.440 in
Port Count: 24 Port
Front Connection: Angled
Packaging: Individually packaged in a cardboard box.
Weight: 2.700 lbs

Connectors

Materials
DescriptionMaterial
PanelSteel

Construction and Dimensions

Max Capacity: 24 connectors

Temperature Range

Installation Temp Range: -10°C To +60°C
Storage Temp Range: -40°C To +70°C
Operating Temp Range: -10°C To +60°C

Standards

Data Category: Category 5e

Applicable Environmental and Other Programs

EU Directive 2011/65/EU (ROHS II): Yes
MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing: Bi-national Standard Listed

Part Number

Related Parts: Compatible with CAT5E Patch Cord and CAT5E Pre-Terminated Cable Assemblies.
Variants
Item #ColorUPC
AX105357Black611589007443

Product Notes

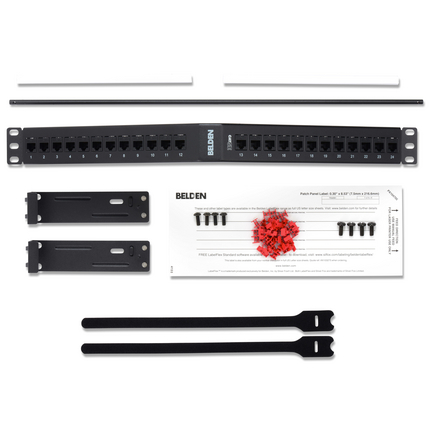

Included Parts: 4 Screws (10x32); 4 Screws (12x24); 1 Printable LabelFlex Half-Sheet; 2 Label Holders; 2 Velcro Straps; 2 Rear Cable Management Bracket; 1 Bar
Notes: Refer to AX102283 for the Specifications of the Modular Jacks
