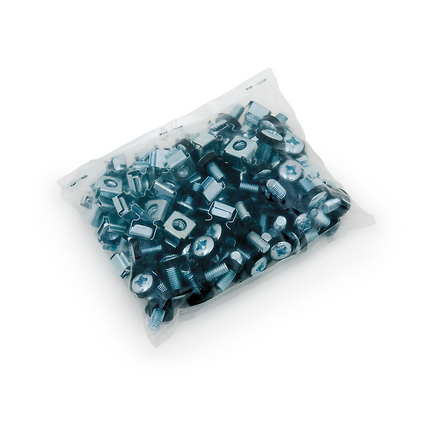

(4)Cage nuts set M6 for E-Series Cabinets. Set of Cage Nuts: M16x12mm Bolt, Washer, M6 Cage Nut
| Suitable Applications: | Cage nuts to mount devices or panels in the vertical rail of an E-Series cabinet |
| Environmental Space: | Indoor |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Packaging: | packed in a plastic bag |
| Item # | Number of Pieces | Application |
|---|---|---|
| EDAC3100 | 4 | E-Series Cabinets |
| EDAC3200 | 20 | E-Series Cabinets |
| EDAC3300 | 50 | E-Series Cabinets |
| Update and Revision: | Revision Number: 0.54 Revision Date: 04-08-2022 |
