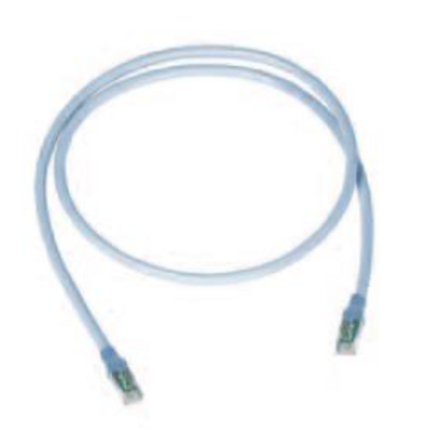

(4)26AWG Category 6A Shielded Patch Cord
| Suitable Applications: | IBDN System 10GX, TIA Category 6A, ISO Class EA, 10GBASE-T. |
| AWG | Material |
|---|---|
| 26 | BC - Bare Copper |
| Total Number of Pairs: | 4 |
| Overall Nominal Diameter: | 6.2mm |
| Packaging: | Individually packaged in a clear plastic bag. |
| Cable Type: | S/FTP Cat6A |
| Dielectric Strength: | 1000 VAC (RMS) |
| Current Rating: | 1.5 A |
| Insulation Resistance: | 100 M-Ohm Minimum |
| Max Contact Resistance: | 20 mOhm |
| Voltage Rating: | 72VDC |
| UL Temperature Rating: | -25°C To +70°C |
| Min Bend Radius (Overall Cable): | 1.040 in |
| Data Category: | Category 6A |
| TIA/EIA Compliance: | Category 6A - TIA-568.2-D ISO/IEC 11801-1 |
| Other Standards: | FCC Part 68, Subpart F, IEC 60603-7 |
| Environmental Space: | Indoor |
| MII Order #39 (China RoHS): | EUP 50 |
| Related Parts: | 10GX Modular Jacks and Couplers, 10GX Patch Panels |
| Item # | Color | Length |
|---|---|---|
| CAC41100D5F | Black | 0.5 ft |
| CAC4106007F | Blue | 7 ft |
| CAC9106007F | Blue | 7 ft |
| CAC4106010F | Blue | 10 ft |
| CAC9106010F | Blue | 10 ft |
| CAC41060D5F | Blue | 0.5 ft |
| CAC4108007F | Gray | 7 ft |
| CAC9108007F | Gray | 7 ft |
| CAC4108010F | Gray | 10 ft |
| CAC9108010F | Gray | 10 ft |
| CAC4105007F | Green | 7 ft |
| CAC9105007F | Green | 7 ft |
| CAC4105010F | Green | 10 ft |
| CAC9105010F | Green | 10 ft |
| CAC41080D5F | Grey | 0.5 ft |
| CAC4119007F | Pink | 7 ft |
| CAC9119007F | Pink | 7 ft |
| CAC4119010F | Pink | 10 ft |
| CAC9119010F | Pink | 10 ft |
| CAC4102007F | Red | 7 ft |
| CAC9102007F | Red | 7 ft |
| CAC4102010F | Red | 10 ft |
| CAC9102010F | Red | 10 ft |
| CAC4109007F | White | 7 ft |
| CAC9109007F | White | 7 ft |
| CAC4109010F | White | 10 ft |
| CAC9109010F | White | 10 ft |
| CAC4104007F | Yellow | 7 ft |
| CAC9104007F | Yellow | 7 ft |
| CAC4104010F | Yellow | 10 ft |
| CAC9104010F | Yellow | 10 ft |
| CAC41040D5F | Yellow | 0.5 ft |
| Notes: | Belden guarantees the patch cord performance in accordance with “Annex - Modeling configurations and length scaling” in the latest ANSI/TIA-568 standard. The fourth letter represents jacket material: 9 - PVC and 4 - LSZH. |
| Update and Revision: | Revision Number: 0.12 Revision Date: 07-08-2026 |
