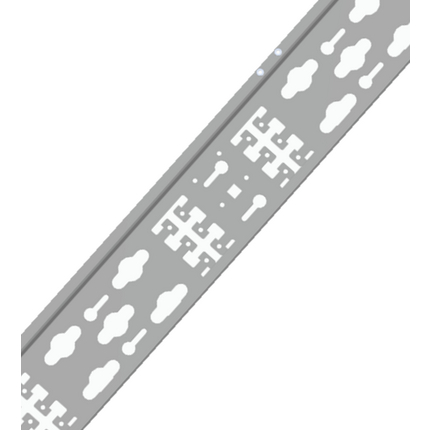

CABLE MAN VERT LACING E-SERIES - EDAV5xx0-Series


Vertical Lacing Panel For E-Series EDC, ESN and ESH.

Application

Suitable Applications: Panel for cable management and easy PDU & Slack-Storage-Spools mounting. Suitable for EDC, ESN and ESH cabinets. (For EDC cabinets, a lacing panel with a minimum of 5U shorter length than the cabinet size, should be used)
Environmental Space: Indoor

Construction and Dimensions

Width: 85 mm

Environmental and Overall Characteristics

Material: Steel
Color: Metallic

Standards

EU Directive 2011/65/EU (ROHS II): Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2017-02-23
MII Order #39 (China RoHS): EUP 50

Part Number

Included Parts: The package comes with screws for installation
Packaging: Individually packed.
Variants
Part #HeightESN / ESH Application Min. cabinet sizeEDC Application Min. cabinet size
EDAV53201225 mm32U 37U
EDAV53701450 mm37U42U
EDAV54201670 mm42U47U
EDAV54501805 mm45UN/A
EDAV54701895 mm47UN/A
Update and Revision: Revision Number: 0.50 Revision Date: 10-01-2020
Date: 2017-02-23
No accessories are available for this product
