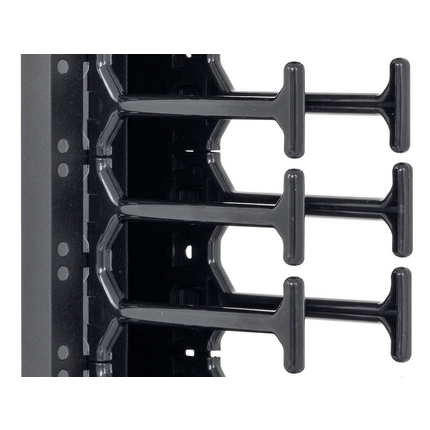

(4)Vertical Cable Management Double finger strip for E-Series.
| Suitable Applications: | Cable manager for 800mm wide Free Standing E-Serie Cabinets |
| Environmental Space: | Indoor |
| Width: | 60 mm |
| Depth: | 135 mm |
| Material: | Metal and plastic moulded fingers on two sides |
| Color: | Black |
| EU Directive 2011/65/EU (RoHS 2): | Compliant |
| MII Order #39 (China RoHS): | EUP 50 |
| Part Number: | EDAV2xx2 |
| Included Parts: | cable manager and bolts for installation |
| Packaging: | Individually packed. |
| Part # | Height | Application Min. cabinet size |
|---|---|---|
| EDAV2102 | 442 mm | 10U |
| EDAV2152 | 531 mm | 15U |
| EDAV2182 | 620 mm | 18U |
| EDAV2222 | 884 mm | 22U |
| EDAV2272 | 1062 mm | 27U |
| EDAV2322 | 1240 mm | 32U |
| EDAV2372 | 1504 mm | 37U |
| EDAV2422 | 1681 mm | 42U |
| EDAV2452 | 1858 mm | 45U |
| EDAV2472 | 1954 mm | 47U |
| Update and Revision: | Revision Number: 0.130 Revision Date: 01-17-2025 |
