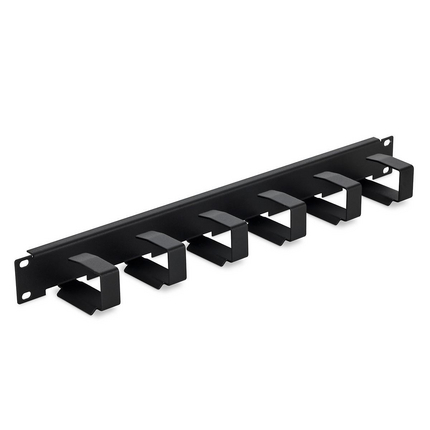

(4)Cable management panel metal with rings for 19" cabinets. Material: Metal with six rings

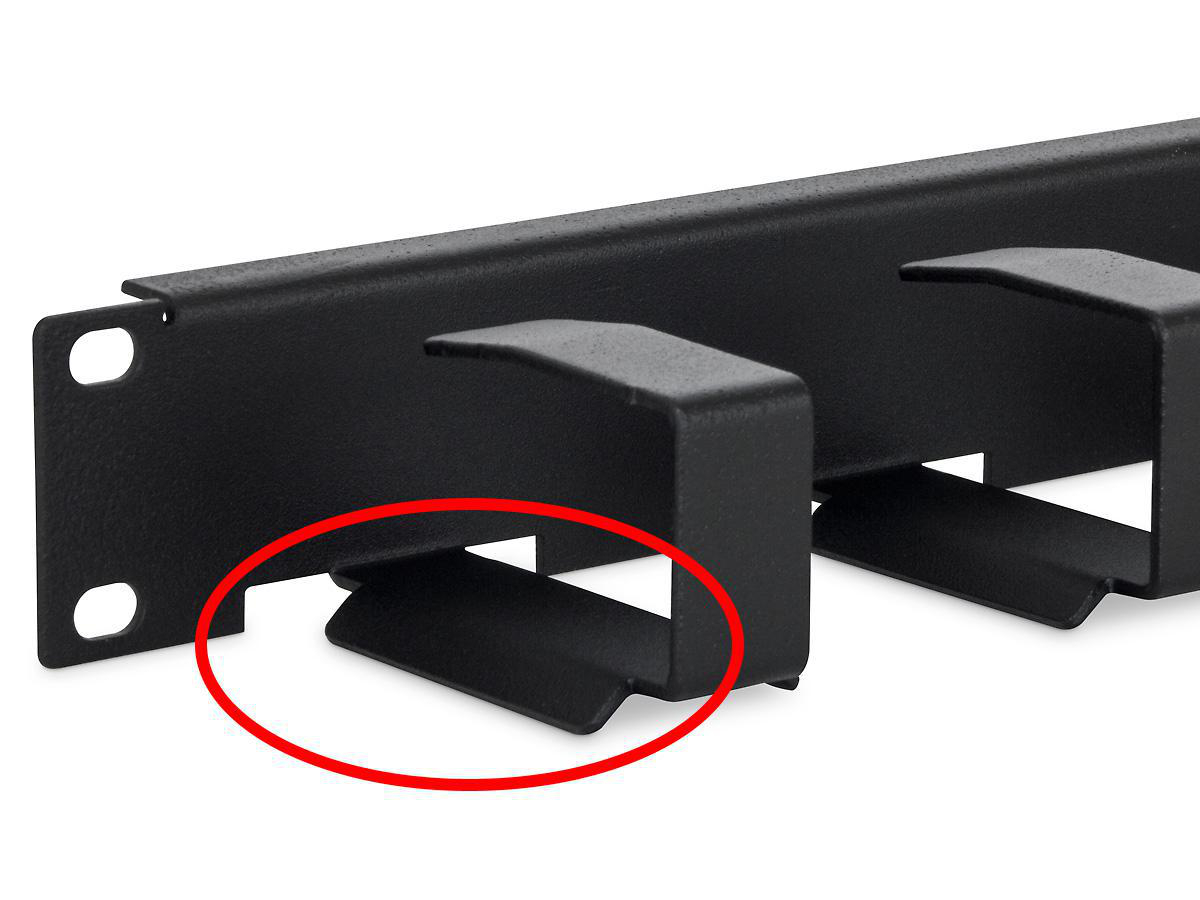

| Suitable Applications: | Cable management panel for 19", metal version with six rings and cable guiding. Suitable for higher load. Installation by using standard cage nuts. |
| Environmental Space: | Indoor |
| Rack Units: | 1U |
| Height: | 40 mm |
| Width: | 19 in |
| Depth: | 70 mm |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Packaging: | Individually packed. |
| Part # | Height | Color | Height | Width | Depth |
|---|---|---|---|---|---|
| EDAH2102 | 40 mm | Black | 1U | 19 in | 70 mm |
| EDAH2101 | 40 mm | Gray | 1U | 19 in | 70 mm |
| Update and Revision: | Revision Number: 0.59 Revision Date: 04-08-2022 |
