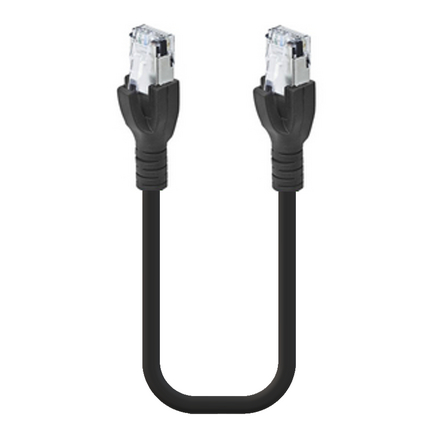

(4)DataTuff Industrial Ethernet Patchcord with ruggedized molded IP20 RJ45 to RJ45 plugs, Cat. 6A S/FTP (Overall Braid & Individual Foil) 4 pair AWG26 Str, PUR Jacket, Sunlight & Oil Resistant (Belden Cable 74005PU)
| Suitable Applications: | Industrial connectivity with ruggedized plugs IP20 RJ45 plugs engineered for enhanced durability in demanding environments. Support current and future Category 6a and 6 applications, such as: 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM, PoE ++ IEEE 802.3 bt type 3 and type 4 is applicable for max. 10m patch cord applications. |
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 26 | Stranded | BC - Bare Copper | 4 |
| Material |
|---|
| PE - Polyethylene (Foam) |
| Element | Material |
|---|---|
| Individual Shielded Pair | Bi-Laminate (Alum+Poly) |
| Material |
|---|
| Tinned Copper (TC) |
| Material | Nominal Diameter |
|---|---|
| PUR - Polyurethane (Halogen Free) | 6.8 mm |
| Description | Material |
|---|---|
| Plug | Polycarbonate |
| Boot | TPE |
| Front Connection | Phosphor Bronze with 30u inch Gold over Nickel Plating |
| Dielectric Strength: | 1 kV DC |
| Current Rating: | 1 A |
| Insulation Resistance: | 5000 MOhm*km |
| Max Contact Resistance: | 20 mOhm |
| Installation Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C to +70°C |
| Min Bend Radius (Overall Cable): | 30 mm |
| Plug /Jack Compatibility: | RJ45 |
| Termination | Connection | Durabilities |
|---|---|---|
| RJ45 | Mated Connection | 1000 Cycles |
| UL AWM Style Compliance: | AWM 21292 |
| ISO/IEC Compliance: | ISO/IEC 11801-1 |
| Data Category: | Category 6A |
| Environmental Space: | Indoor Rated (Not Riser or Plenum) |
| EU Directive 2002/95/EC (RoHS): | EU Directive 2011/65/EU (ROHS II) |
| Suitability - Indoor: | Yes |
| Suitability - Oil Resistance: | Yes |
| IEC Flammability: | IEC 60332-1-2 |
| Update and Revision: | Revision Number: 0.14 Revision Date: 04-01-2026 |
