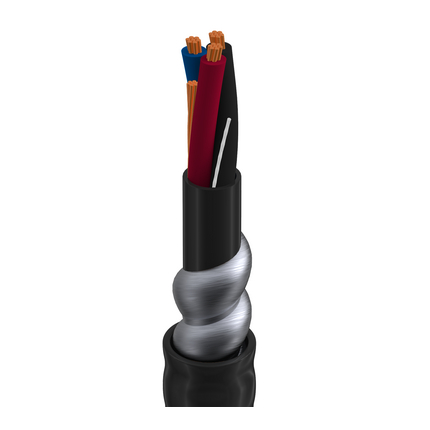

C5591 - Teck90 1000V, 3+G C 6 Str BC, XLPE Ins, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA SUN RES -40C

Teck90 1000V, 3+G Conductor 6 AWG (7x14H) Bare Copper, XLPE insulation, 8 AWG (7x16H) bare copper ground wire, PVC Inner Jacket, Aluminum Interlock Armor, Black PVC Outer Jacket, CSA SUN RES -40C

Product Overview

Suitable Applications: Power and Control Applications up to 600V

Construction Details

Conductor
ElementNumber of ElementSizeStrandingMaterial
Conductor(s)367x14BC - Bare Copper
Ground187x16BC - Bare Copper
Insulation
MaterialNom. ThicknessNom. Insulation DiameterColor Code
XLP, XLPO, XLPE (Thermoset)0.061 in (1.5 mm)0.300 in (7.62 mm)Black, Red, Blue
Inner Jacket
MaterialNom. ThicknessNom. Diameter
PVC - Polyvinyl Chloride0.063 in (1.6 mm)0.773 in (19.6 mm)
Armor
Armor Type & MaterialDiameter Over Armor
AIA - Aluminum Interlock Armor1.033 in (26.24 mm)
Outer Jacket
MaterialNom. ThicknessNom. DiameterRipcord
PVC - Polyvinyl Chloride0.048 in (1.2 mm)1.129 in (28.68 mm)Yes

Electrical Characteristics

Electricals
ElementNom. Conductor DCRMax. Current
Conductor(s)0.41 Ohm/1000ft75 Amps per Conductor at 25ºC
Ground0.654 Ohm/1000ft (2.15 Ohm/km)
Voltage
Voltage Rating
1000 V (TECK 90)

Mechanical Characteristics

Temperature
UL TemperatureOperatingInstallation
90°C-40°C To +90°C-25°C To +90°C
Bend Radius
Stationary Min.Installation Min.
9.032 in (229.4 mm)9.032 in (229.4 mm)
Max. Pull Tension: 1462.1 lbs (663.20 kg)
Bulk Cable Weight: 687 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire: FT4
CEC / C(UL) Compliance: TECK 90, HL
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.194 Revision Date: 04-08-2022

Part Numbers

Variants
Item #Putup Type
C5591 0105000Reel
Date: 2006-01-01
No accessories are available for this product
