C5581 - Teck90 1000V, 3+G C #8+10 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C

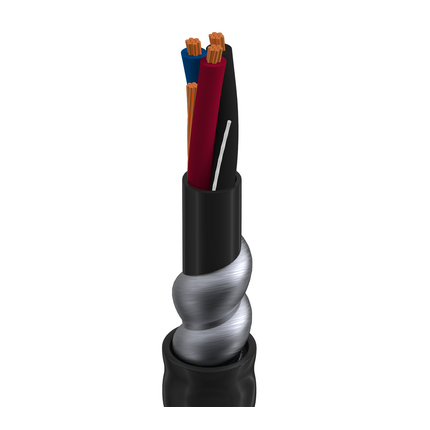

Teck90 1000V, 3+G Conductor 8+10AWG (7x16H) Bare Copper, XLPE Insulation M4 Color Code, PVC Inner Jacket, Aluminum Interlock Armor, Black PVC Outer Jacket, CSA HL SUN RES -40C

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
87x16BC - Bare Copper3
10BC - Bare Copper1
Conductor Count: 3
Insulation
MaterialNominal Wall Thickness
XLP, XLPO, XLPE (Thermoset)0.045 in
No Insulation
Color Chart
NumberColor
1Red
2Black
3Blue
Inner Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.63 in0.063 in
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.951 in0.048 in

Construction and Dimensions

Armor
Type of ArmorMaterialDiameter over Armoring
InterlockedAluminum0.855 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
0.64 Ohm/1000ft
Current
Max. Recommended Current [A]
55 Amps per Conductor at 30ºC
Voltage
DescriptionNon-UL DescriptionNon-UL Voltage Rating
Type TECK 90TECK 901000 V RMS

Temperature Range

Installation Temp Range: -25°C To +90°C
Non-UL Temp Rating: 90°C
Operating Temp Range: -40°C To +90°C

Mechanical Characteristics

UV Resistance: Yes
Bulk Cable Weight: 454 lbs/1000ft
Max. Pull Tension: 200 lbs
Min Bend Radius/Minor Axis: 11.5 in

Standards

NEC/(UL) Compliance: N/A
CEC/C(UL) Compliance: CSA C22.2 #131; Hazardous Location; C22.2 #0.3 Clause 4.31 Low Acid Gas

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU RoHS Compliance Date (yyyy-mm-dd): 2006-01-01

Suitability

Suitability - Burial: Yes
Suitability - Hazardous Locations: Yes
Suitability - Indoor: Yes
Suitability - Outdoor: Yes
Suitability - Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

CSA Flammability: FT4
UL voltage rating: N/A

Plenum/Non-Plenum

Plenum (Y/N): No

History

Update and Revision: Revision Number: 0.111 Revision Date: 06-24-2020
Date: 2006-01-01
