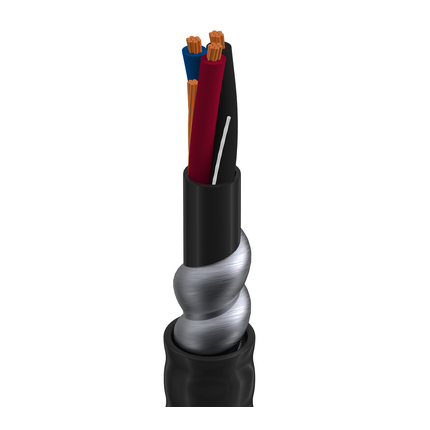

(4)Teck90 600V, 3+G Conductor 12+14AWG (7x20H) Bare Copper, XLPE Insulation M4 Color Code, PVC Inner Jacket, Aluminum Interlock Armor, Black PVC Outer Jacket, CSA HL SUN RES -40C
| Suitable Applications: | Power and Control Applications up to 600V |
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 3 | 12 | 7x20 | BC - Bare Copper |
| Ground | 1 | 14 | 7x22 | BC - Bare Copper |
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|
| XLP, XLPO, XLPE (Thermoset) | 0.03 in (0.76 mm) | 0.150 in (3.81 mm) | Black, Red, Blue |
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.417 in (10.6 mm) |
| Armor Type & Material | Diameter Over Armor |
|---|---|
| AIA - Aluminum Interlock Armor | 0.642 in (16.3 mm) |
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.048 in (1.2 mm) | 0.738 in (18.7 mm) | Yes |
| Element | Nom. Conductor DCR | Max. Current |
|---|---|---|
| Conductor(s) | 1.68 Ohm/1000ft | 24 Amps per Conductor at 30ºC |
| Ground | 2.6 Ohm/1000ft (8.5 Ohm/km) |
| Voltage Rating |
|---|
| 600 V (TECK 90) |
| UL Temperature | Operating | Installation |
|---|---|---|
| 90°C | -40°C To +90°C | -25°C To +90°C |
| Stationary Min. | Installation Min. |
|---|---|
| 5.904 in (150.0 mm) | 5.904 in (150.0 mm) |
| Max. Pull Tension: | 315 lbs (143 kg) |
| Bulk Cable Weight: | 261 lbs/1000ft |
| Environmental Suitability: | Indoor, Outdoor, Sunlight Resistance, Burial |
| CEC / C(UL) Compliance: | TECK 90, HL |
| European Directive Compliance: | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Update and Revision: | Revision Number: 0.257 Revision Date: 02-03-2025 |
| Item # | Putup Type | UPC |
|---|---|---|
| C5531 01010000 | Reel | 612825282648 |
| C5531 0102500 | Reel | 612825282662 |
| C5531 0105000 | Reel | 612825282686 |
| C5531 0105000 | Reel | 612825282686 |
| C5531 0107500 | Reel | 612825282709 |
| C5531 01010000 | Reel |
