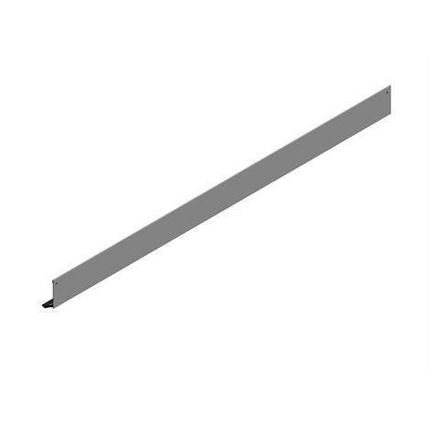

(4)Bottom Seal Skirt. Side skirt allow sealing below cabinets when on levelers.
| Environmental Space: | Indoor |
| Material: | Steel, clean seal gasketing and magnet strip |
| Application | Item Part # | Description |
|---|---|---|
| XHM Series XHMS Series | H30SS01 | Bottom Side Seal Skirt, 30"D Cabinet |
| XHM Series XHMS Series | H30SS02 | Bottom Side Seal Skirt, 30"D Cabinet |
| XHM Series XHMS Series | H36SS01 | Bottom Side Seal Skirt, 36"D Cabinet |
| XHM Series XHMS Series | H36SS02 | Bottom Side Seal Skirt, 36"D Cabinet |
| XHM Series XHS Series XHMS Series XHSN Series XHSS Series | H42SS01 | Bottom Side Seal Skirt, 42"D Cabinet |
| XHM Series XHS Series XHMS Series XHSN Series XHSS Series | H42SS02 | Bottom Side Seal Skirt, 42"D Cabinet |
| XHM Series XHS Series XHMS Series XHSN Series XHSS Series | H48SS01 | Bottom Side Seal Skirt, 48"D Cabinet |
| XHM Series XHS Series XHMS Series XHSN Series XHSS Series | H48SS02 | Bottom Side Seal Skirt, 48"D Cabinet |
| Update and Revision: | Revision Number: 0.26 Revision Date: 05-31-2024 |
