(109)8 PAIR AES/EBU, 26AWG/0.14mm², ISTP, LSZH, STAGE
| Suitable Applications: | Digital multi-modulation cable used in professional studiotechnics; For analogue and digital transmission in instruments for frequency modulation; Designed to meet the requirements of the AES/EBU specification |
| AWG | Stranding | Material | Construction n x D |
|---|---|---|---|
| 26 | 18x38 | TC - Tinned Copper | 18x0.10 mm |
| Conductor Count: | 16 |
| Total Number of Pairs: | 8 |
| Type | Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|---|
| Insulation | PE - Polyethylene | 1.13 mm | 0.03 mm |
| Number | Color |
|---|---|
| Pair 1 t/m 8 | White & Blue |
| Type | Material | Min. Coverage [%] |
|---|---|---|
| Tape | Polyester | |
| Spiral Serve / Screen | Tinned Copper (TC) | 90% |
| Material | Color | Nominal Diameter | Diameter +/- Tolerance | Nominal Wall Thickness |
|---|---|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | Gray | 2.90 mm | 0.10 mm | 0.20 mm |
| Table Notes: | Elements are numbered |
| Type | Material | Drainwire Material | Drainwire AWG | Drainwire Construction n x D | Drainwire Position | Min. Coverage [%] |
|---|---|---|---|---|---|---|
| Braid | Tinned Copper (TC) | TC - Tinned Copper | 26 | 18x0.10 mm | Over separating foil, under braid | 90% |
| Material | Nominal Diameter | Diameter +/- Tolerance | Nominal Wall Thickness |
|---|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 12.50 mm | 0.50 mm | 1.10 mm |
| Description |
|---|

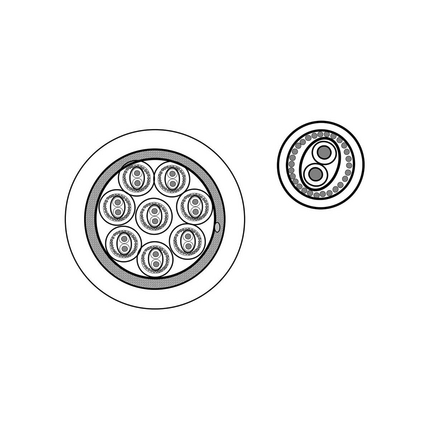

| 8 pairs covered with a non-woven separating foil |
| Max. Conductor DCR | Nominal Inner Shield DCR |
|---|---|
| 130 Ohm/km | 40 Ohm/km |
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Shield |
|---|---|
| 56 pF/m | 220 pF/m |
| Min Insulation Resistance: | 2000 MOhm*km |
| Nominal Pair Inductance |
|---|
| 0.80 µH/m |
| Frequency [MHz] | Nominal Characteristic Impedance | Nominal Characteristic Tolerance |
|---|---|---|
| 0.1 - 6 | 110 Ohm | +/- 10 Ohm |
| 6 - 24 | 110 Ohm | 20 Ohm |
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 2 MHz | 3.1 dB/100m |
| 4 MHz | 6.2 dB/100m |
| 5 MHz | 7.3 dB/100m |
| 6 MHz | 8.2 dB/100m |
| 12 MHz | 13.1 dB/100m |
| 24 MHz | 21.1 dB/100m |
| Nominal Velocity of Propagation (VP) [%] |
|---|
| 60% |
| Other Temp Range: | -30 to +70 °C |
| Max. Pull Tension: | 400 N |
| Min. Bend Radius During Installation: | 125 mm |
| Min. Bend Radius During Operation: | 187.5 mm |
| CENELEC Compliance: | EN 50290-2-20 |
| Environmental Space: | Indoor |
| IEC Flammability: | IEC 60332-3-24 |
| IEC 60754-1 - Halogen Amount: | Zero |
| IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity: | 2.5 µS/mm |
| IEC 60754-2 - Halogen Acid Gas Amount - Min. pH: | 4.3 |
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| BE46935.01250 | Gray | Reel | 250 m | 8719605027757 |
| BE46935.01500 | Gray | Reel | 500 m | 8719605027764 |
| Update and Revision: | Revision Number: 0.174 Revision Date: 01-15-2024 |
