BE46383 - Speaker cable PVC 4x4.0mm²


Speakercable PVC 4x4.0mm²

Product Overview

Suitable Applications: Speaker cable

Physical Characteristics (Overall)

Conductor
StrandingMaterialCross SectionConstruction n x D
StrandedBC - Bare Copper4.00 mm²56x0.30 mm
Conductor Count: 4
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationPVC - Polyvinyl Chloride3.50 mm0.07 mm
Color Chart
NumberColor
Wire 1Black
Wire 2Red
Wire 3White
Wire 4Green
Outer Jacket Material
MaterialNominal DiameterDiameter +/- Tolerance
PVC - Polyvinyl Chloride11.00 mm0.20 mm
OuterJacket1, Table Note: Flexible Matte Finish Sheath

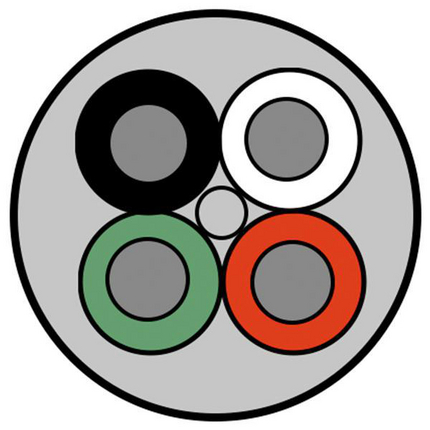

Construction and Dimensions

Cabling
DescriptionFiller
1 center filler + 4 wires twistedPVC (1.30 mm)

Electrical Characteristics

Conductor DCR
Max. Conductor DCR
4.5 Ohm/km

Temperature Range

Storage Temp Range: -15°C To +60°C
Other Temp Range: -5 to +60 °C

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01

Part Number

Variants
Item #ColorPutup TypeLengthEAN
BE46383.00100BlackReel100 m8719605027597
BE46383.00305BlackReel305 m8719605027603

History

Update and Revision: Revision Number: 0.127 Revision Date: 04-06-2020
Date: 2004-01-01
