BE46382 - Speaker Cable PVC 2x1.5mm², CPR Eca.

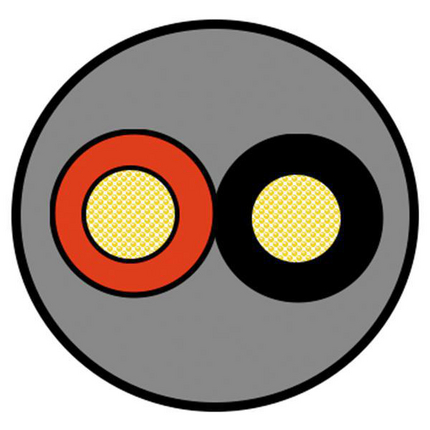

Speaker Cable, 2 Conductor 1.5mm² (30 x 0.25mm) Oxygen-Free Bare Copper (High Conductivity), PVC Insulation, PVC Jacket, Flexible, CPR Euroclass Eca.

Product Overview

Suitable Applications: Speaker cable

Physical Characteristics (Overall)

Conductor
StrandingMaterialCross SectionConstruction n x DNo. of Conductors
StrandedBC - Bare Copper1.50 mm²30x0.25 mm2
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationPVC - Polyvinyl Chloride2.50 mm0.07 mm
Color Chart
NumberColor
Wire 1Black
Wire 2Red
Outer Jacket
MaterialNominal DiameterDiameter +/- Tolerance
PVC - Polyvinyl Chloride7.00 mm0.25 mm
Table Notes: Flexible Matte Finish Sheath

Construction and Dimensions

Cabling
Description
2 wires twisted

Electrical Characteristics

Conductor DCR
Max. Conductor DCR
13 Ohm/km
Voltage
Voltage Rating [V]
300 V

Temperature Range

Storage Temperature Range: -15°C To +60°C
Operating Temp Range (Flexible Install): -5°C To +60°C
Operating Temp Range (Fixed Install): -15°C To +60°C

Mechanical Characteristics

Max. Pull Tension: 200 N

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor - Euroclass Eca

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2

Related Part Numbers

Variants
Item #ColorPut-Up TypeLengthEAN
BE46382.01100BlackReel100 m8719605027559
BE46382.01200BlackReel200 m8719605027573
BE46382.01500BlackReel500 m8719605027580
BE46382.011000BlackReel1,000 m8719605027566
BE46382.00100GrayReel100 m8719605027535
BE46382.00500GrayReel500 m8719605027542

History

Update and Revision: Revision Number: 0.147 Revision Date: 04-08-2022
Date: 2004-01-01
