BE46381 - Speaker Cable PVC 2x2.5mm², CPR Eca.


Speaker Cable, 2 Conductor 2.5mm² (50 x 0.25mm) Oxygen-Free Bare Copper (High Conductivity), PVC Insulation, PVC Jacket, Flexible, CPR Euroclass Eca.

Product Overview

Suitable Applications: Speaker cable

Physical Characteristics (Overall)

Conductor
StrandingMaterialCross SectionConstruction n x D
StrandedBC - Bare Copper2.50 mm²50x0.25 mm
Conductor Count: 2
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationPVC - Polyvinyl Chloride2.90 mm0.07 mm
Color Chart
NumberColor
Wire 1Black
Wire 2Red
Outer Jacket
MaterialNominal DiameterDiameter +/- Tolerance
PVC - Polyvinyl Chloride8.05 mm0.10 mm
Table Notes: Flexible Matte Finish Sheath

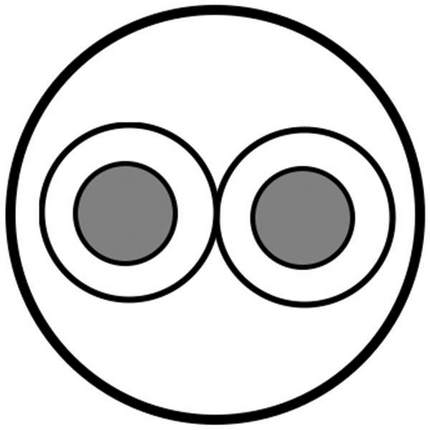

Construction and Dimensions

Cabling
Description
2 wires twisted

Electrical Characteristics

Conductor DCR
Max. Conductor DCR
8 Ohm/km
Voltage
Voltage Rating [V]
300 V

Temperature Range

Storage Temperature Range: -15°C To +60°C
Other Temp Range: -5 to +60 °C

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor - Euroclass Eca

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2

Related Part Numbers

Variants
Item #ColorPut-Up TypeLengthEAN
BE46381.01100BlackReel100 m8719605027504
BE46381.01500BlackReel500 m8719605027528
BE46381.011000BlackReel1,000 m8719605027511

History

Update and Revision: Revision Number: 0.154 Revision Date: 02-03-2025
Date: 2004-01-01
